The microscopy of vegetable foods : with special reference to the detection of adulteration and the diagnosis of mixtures (1906)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924 · New York : John Wiley & Sons · leaf 630

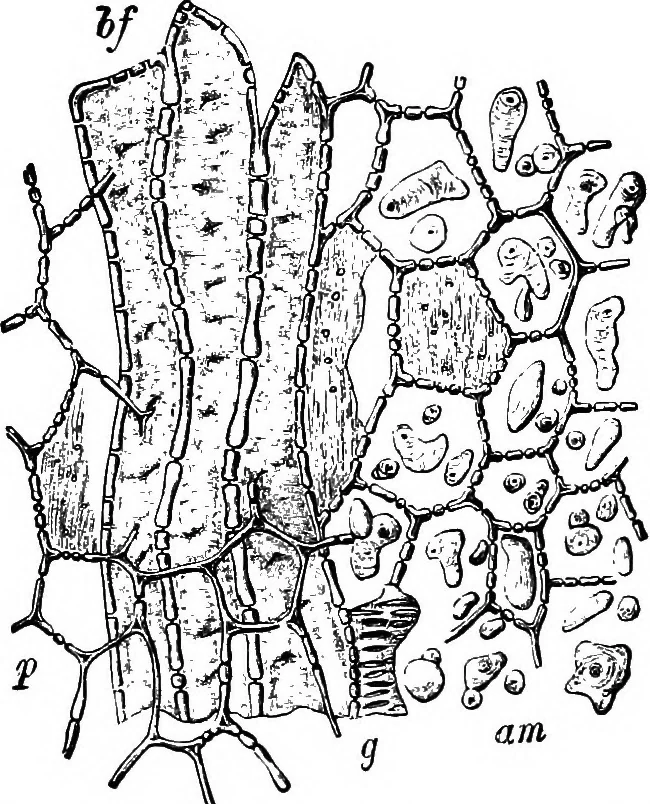

Fig. 521. Galangal. Cross section of rhizome, pa parenchyma, oe oil cells, and end endo-dermis of the cortex; ha bast fibers and ge vessels of a bundle. (Gilg.) … Fig. 522. Galangal. Longitudinal section of rhizome, p thick-walled parenchyma;bj bast fibers; g vessel; am starch. X160. (Moeller.) 6o8 SPICES AND CONDIMENTS. are further distinguished from the adjoining layers by the absence ofstarch. 4. Central Cylinder. The thick-walled, porous parenchyma is…
Plant anatomy · Food adulteration and inspection · Microscopy
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
