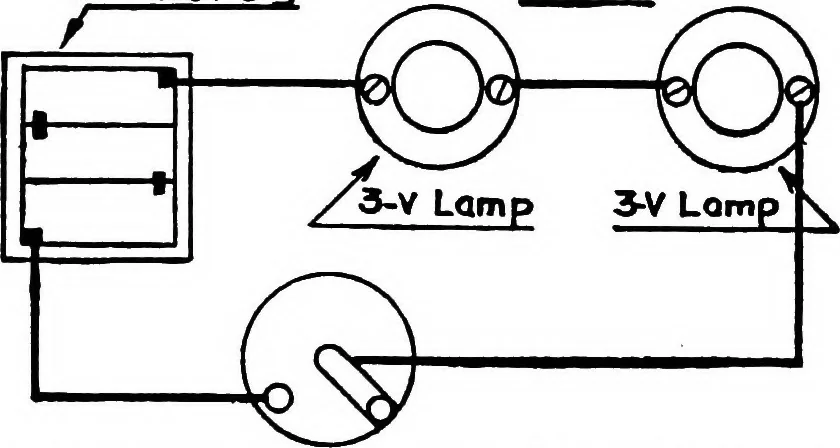

inals. With this arrangement 44 PRACTICAL ELECTRICITY FOR BEGINNERS neither lamp will operate if anything happens to either, be-cause current cannot flow thru one without flowing thru theother. This combination is used in connecting the dashlight and the tail light on an automobile so if the tail… … Fig. 24. Two lamps (3-volt) connected in series to a 6-voIt bat-tery. The failure of either lamp to operate will cause the other tocease to light. that if two lamps are connected in series, their voltage mustbe only one-half that of the battery upon which they operate;that is, if an auto is…
