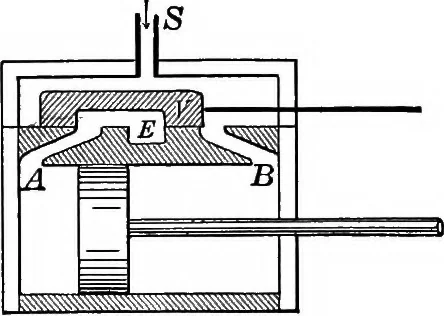

280. Slide Valves. — The simplest, earliest, and still much-used form of valve (especially on locomotives and small en-gines) is shown in Fig. 224. Drawthe figure as shown, and trace thepath of the steam as it enters at S,passes by and around the slidevalve, V, and through the opening,B, to the… … Fig. 224. 254 PRINCIPLES OF PHYSICS. the piston through A, then under the valve V to E, whichconnects with a pipe vertical to the sectionV shown. [_j ^_J Draw Fig. 224, omitting the valve, V, and the piston, and the rods connected withthem. Cut out of paper the outlines ofthe valve and piston (Fig.…
