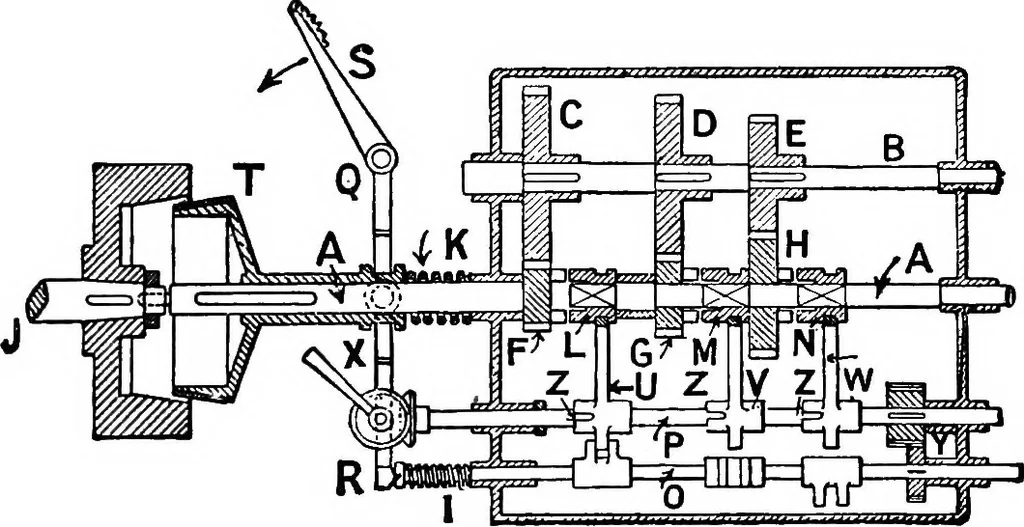

m, themotion is transmitted from the engine shaft J to the spindleAthrough the clutch T, which can slide along A by means of afeather. The wheels F, G, H ride loosely on A, and, as before,mesh with C, D, E, keyed to the shaft B. The wheels F, G, andH can be connected to the shaft A by the sliding… … Fio. 72. and these forks in turn are actuated by corresponding pieces keyedto the spindle 0, the lower projections on U, V, and W fitting ingrooves on the pieces attached to 0. The arrangement is such thatU, V, W can never be in gear with the corresponding pieces on 0at the same time; but that a…
