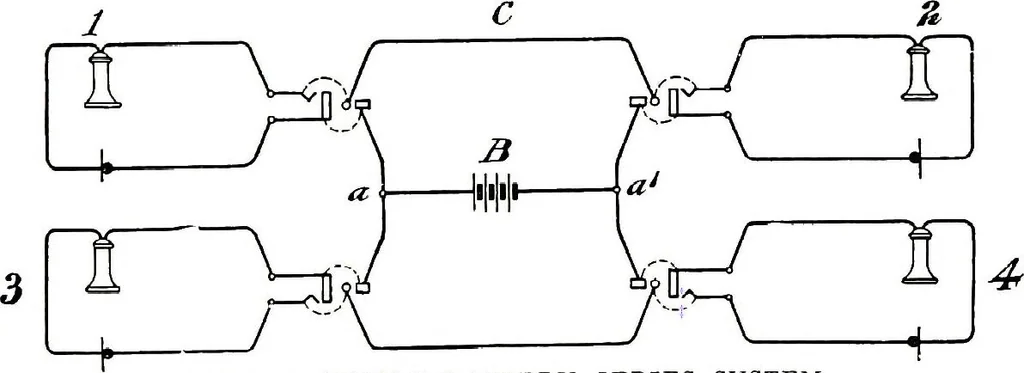

and P. In both of thesecases, in which the battery is included in the cord circuit in serieswith the combined ciruit of the two lines, the use of a separate bat-tery for each cord circuit is, under ordinary circumstances, necessary.This is always true of the grounded system shown in Fig. 226, and… … FIG. 228.-SINGLE BATTERY SERIES SYSTEM that it was possible to supply all of the cord circuits from a singlebattery by connecting them in the manner shown in Fig. 228. Thisinvolves the bunching together of one side qf each of the cord cir-cuits, the battery supplying current in multiple to the…
