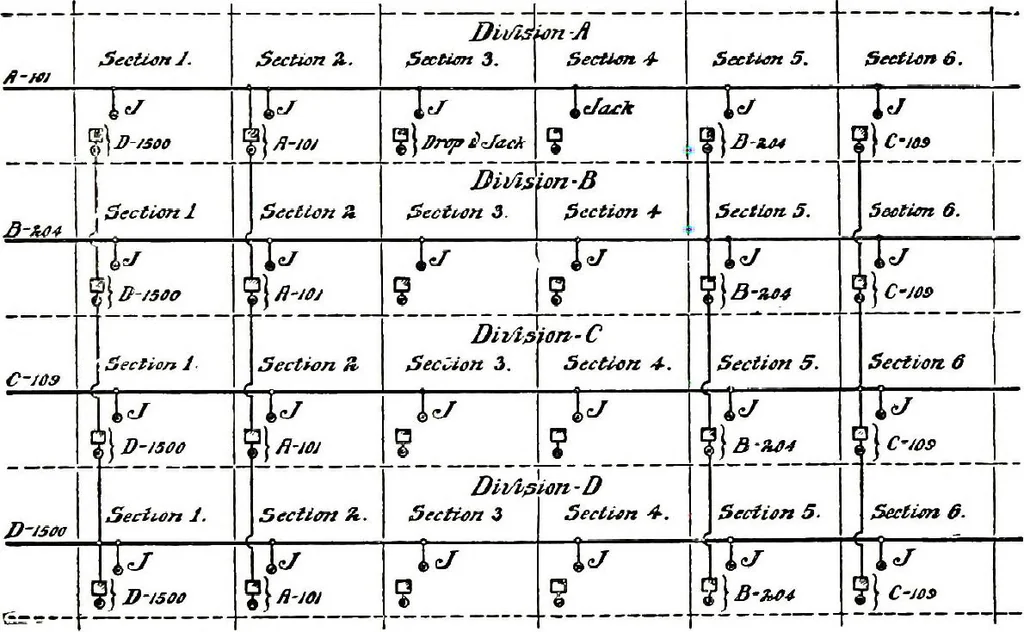

le jack. LineB-Z04, has a multiple jack, J, on each section of the B division, ananswering jack and drop on section 3 of the B division and on sec-tion 5 of the A division. In a similar manner a schematic representation of a four-divisionboard is shown in Fig. 295, in which four lines, A-ioi,… … FIG. 296.-SCHEMATIC DIAGRAM OF DIVIDED MULTIPLE SWITCH-EOARDWITH FOUR DIVISIONS. siring a connection with another subscriber will press the buttonon his telephone corresponding to the division to which the sub-scriber wanted belongs, which will throw the drop of the callingsubscriber in the…
