Martin, Louis Adolphe, 1880- · New York, J.Wiley & Sons, Inc.: [etc. etc.] · leaf 195

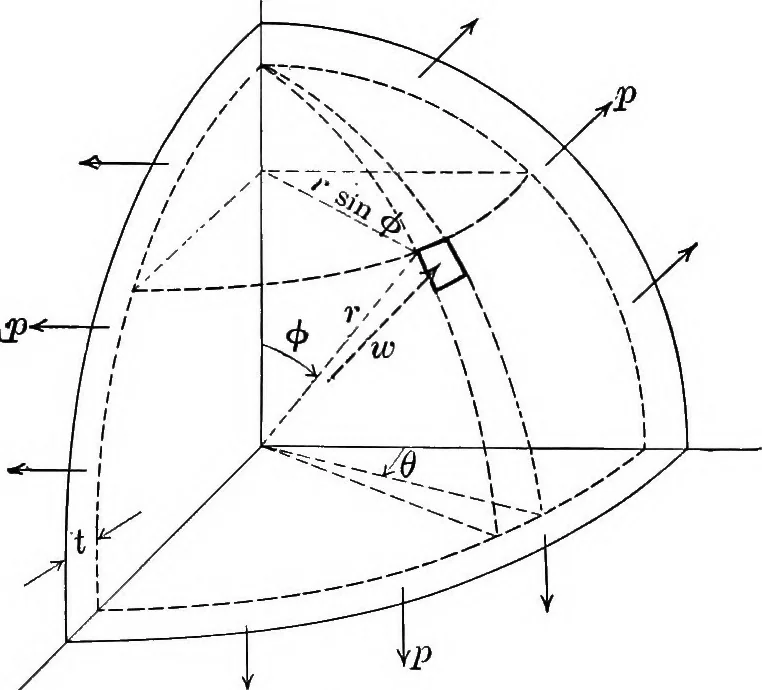

ast-iron air chamber of a pump isof cylindrical form with hemispherical ends. If the diameteris 10 inches and the length of the cylindrical part is 24 inches,what pressure can it withstand with a factor of safety of 5,the wall thickness being 0.5 inch? i74 MECHANICS OF MATERIALS Spherical Shells… … Fig. 89 from the equilibrium of the octant of the shell shown inFig. 89 we have the sum of the vertical forces wr2 sin <j> cos <t>d<t> f dd — — = o. For 02 irrh is approximately the area over which the vertical stress p is assumed uniformly distributed, andthe differential area…
Mechanics
