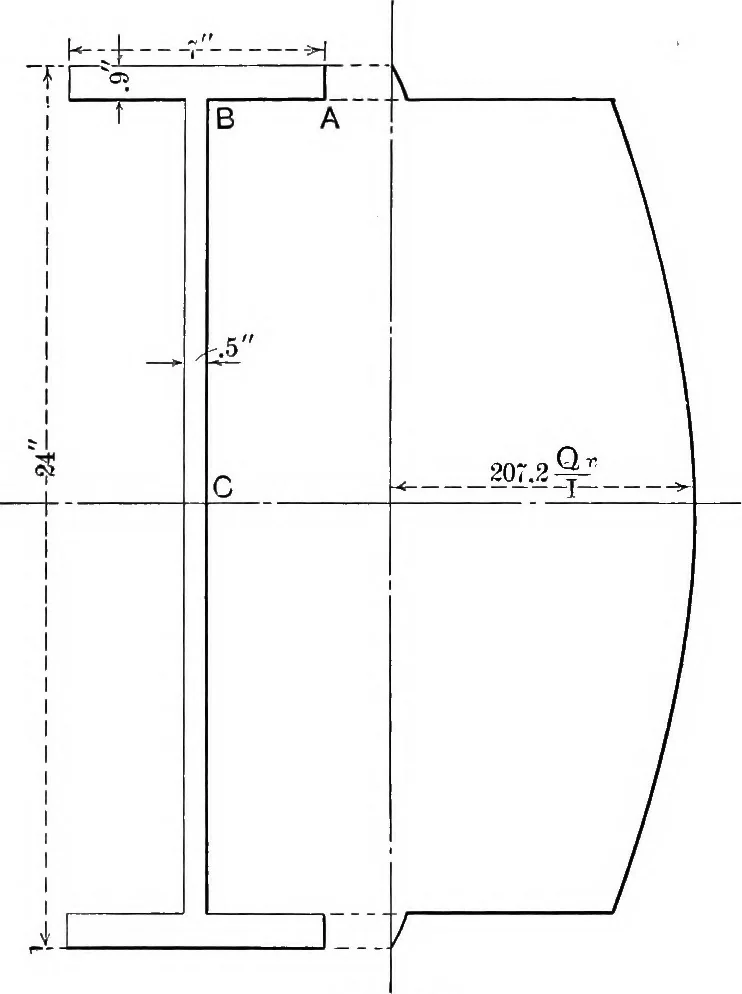

the flanges is neglected andan average depth of flange is used, has approximatelythe dimensions shown in Fig. 38. The shear at A, the lower edge of the upper flange, is <la=fb%y(±A) =^j(-SS) (7 X .9) =^(10.4),at B, the upper edge of the web, qb- ^ (11-55) (7 X.9)= ^(i45-6), A 70 MECHANICS OF… … Fig. 38 to C, the variation may be represented by the curve tothe right of Fig. 38. This graph clearly shows that in beams of I-sectionthe material of the web may for practical calculations be STRESSES IN BEAMS 71 assumed to resist the whole shearing force. As already-noted, the normal stresses due…
