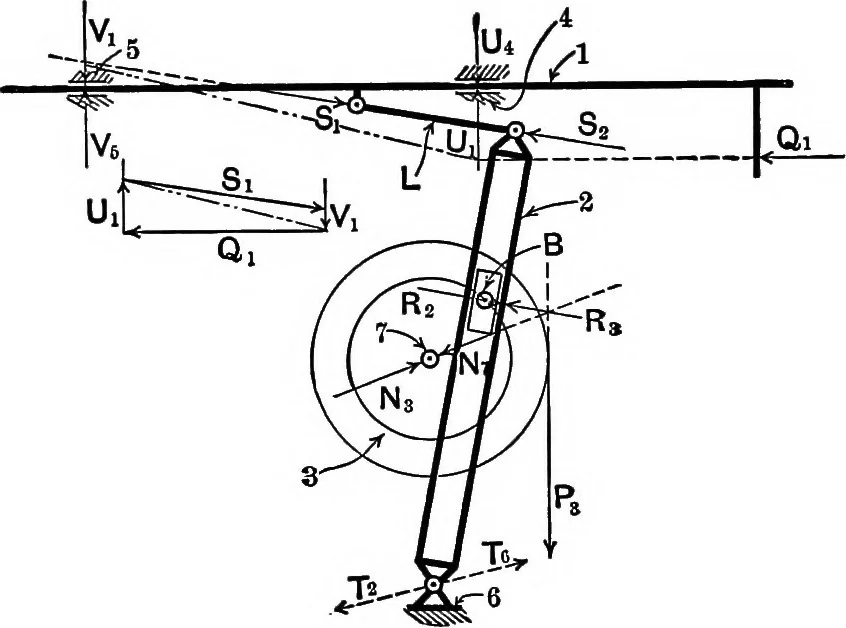

n Ex. 215, Q drives, find Q for agiven p. Exercise 218. In Ex. 215 indicate the direction andmagnitude of the forces acting upon the bearings supportingthe shaft and upon the guides supporting the slotted cross-head and its rod. 158 APPLIED STATICS Section XXIV GENERAL PROCEDURE FOR ANALYZING THE… … Fig. Ill (b) Start with that member of the machine uponwhich the given force acts and determine all other forcesacting upon it by means of the conditions of equilibrium. (c) Proceed from member to member until all mem-bers have been considered. (d) Determine where contact occurs and the directionof…
