Martin, Louis Adolphe, 1880- · New York, J.Wiley & Sons, Inc.: [etc. etc.] · leaf 182

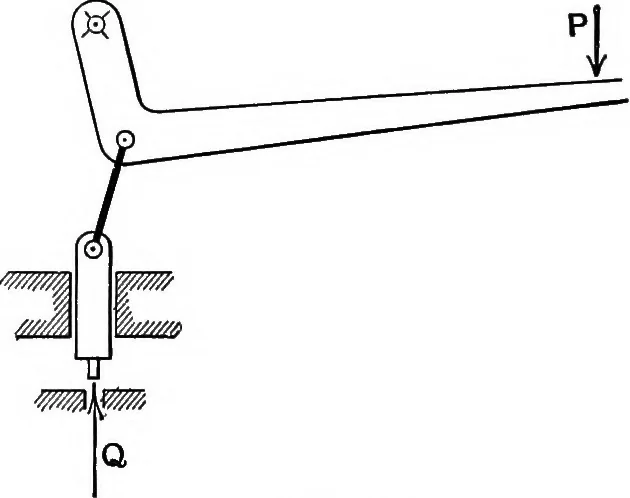

Fig. 114 Exercise 237. Sketch the frame of the machine, Fig.114, and show all forces acting upon it. Exercise 238. In Fig. 115 find P for a given Q. … Fig. 115 In Fig. 116 is shown an oscillating steam cylinderdriving a crank. Note that the steam acts both onthe piston and on the cylinder head. When frictionalresistances are considered, the piston-rod, piston, and 166 APPLIED STATICS cylinder should be regarded as a link joining the trunnionA…
Mechanics
