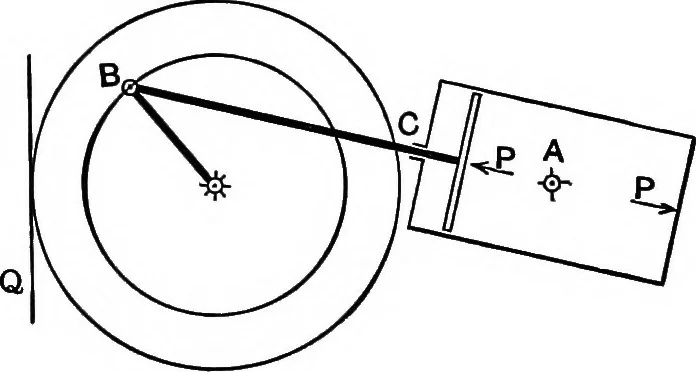

n the cylinder head. When frictionalresistances are considered, the piston-rod, piston, and 166 APPLIED STATICS cylinder should be regarded as a link joining the trunnionA (supporting the cylinder) and the crank pin B. Thefriction axis of this link can then be determined. Nextconsider the… … Fig. 116 Exercise 240. Solve Ex. 239, aU frictional resistancesincluded. Exercise 241. Show the forces acting upon the frameof the machine illustrated in Fig. 116. CHAPTER VIII RESISTANCE TO ROLLING Section XXV INTRODUCTION Whenever a cylinder rolls upon a plane or anothercylindrical surface a…
