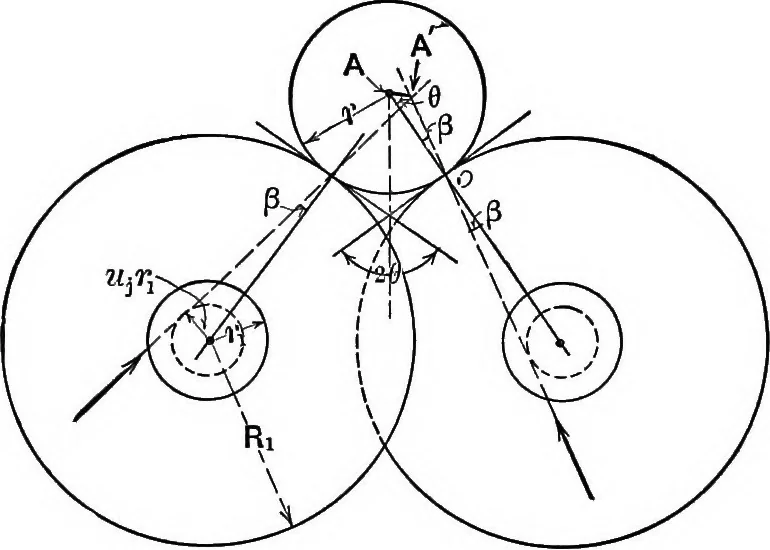

her tension Ti or T^ would shift the line of actionof their resultant, R, to one side or other of the centeroiA. 176 APPLIED STATICS Exercise 258. If the radius of the journal is r and thecoefficient of journal friction is /i,-, how far may the line ofaction of R in Fig. 123 be shifted without… … Fig. 124 Exercise 259. (a) Assume the mechanism, Fig. 122,frictionless and find the lines of action of the forces trans-mitted by the wheels Z? and E to the journal A. (b) Assume journal friction at B and C and find the linesof action of the transmitted forces. (c) Same as (a) or (b) but assume…
