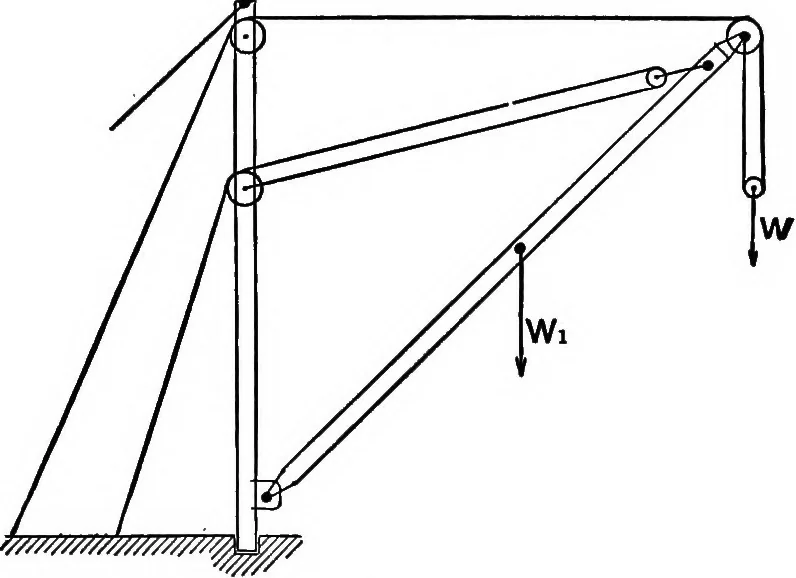

Fig. 129 274. Draw the stress diagram for the jointed frame shownin Fig. 129. Indicate whether the various members are in tension orcompression by placing the proper sign on each member. … Fig. 130 275. Develop a formula for the tension in the tackle ropeof the derrick shown in Fig. 130. Assume all necessary di-mensions and indicate them carefully on your sketch. 276. If two turns of a rope ^ inch in diameter are takenabout a post 10 inches in diameter, what force applied at l82…
