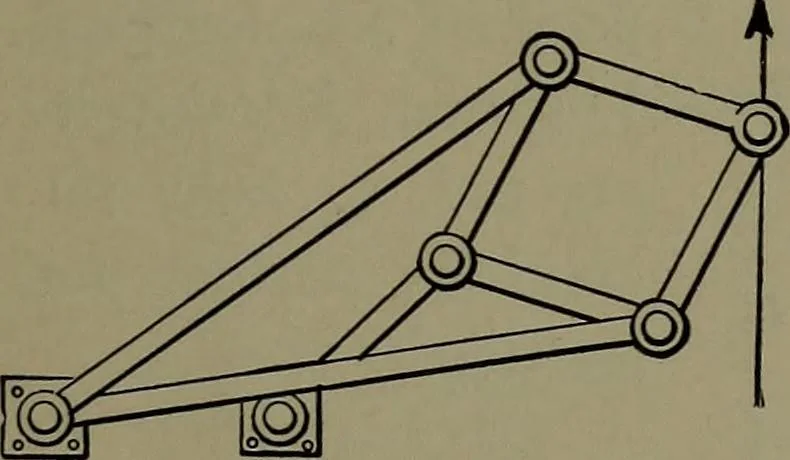

SECTION XV. MOTION AND CONTROLLINGDEVICES. ETC 243 Section XV. MOTION AND CONTROLLING DEVICES, ETC. … 631. PARALLEL MOTION. Peau-celliers seven links. The pivots on thesquare plates are fixed points. The jointat A makes a straight line. All the shortlinks are equal to the length of the fixedpivots. The other links are three timesthe length of the short links. 632. PARALLEL MOTION. The three pivots…
