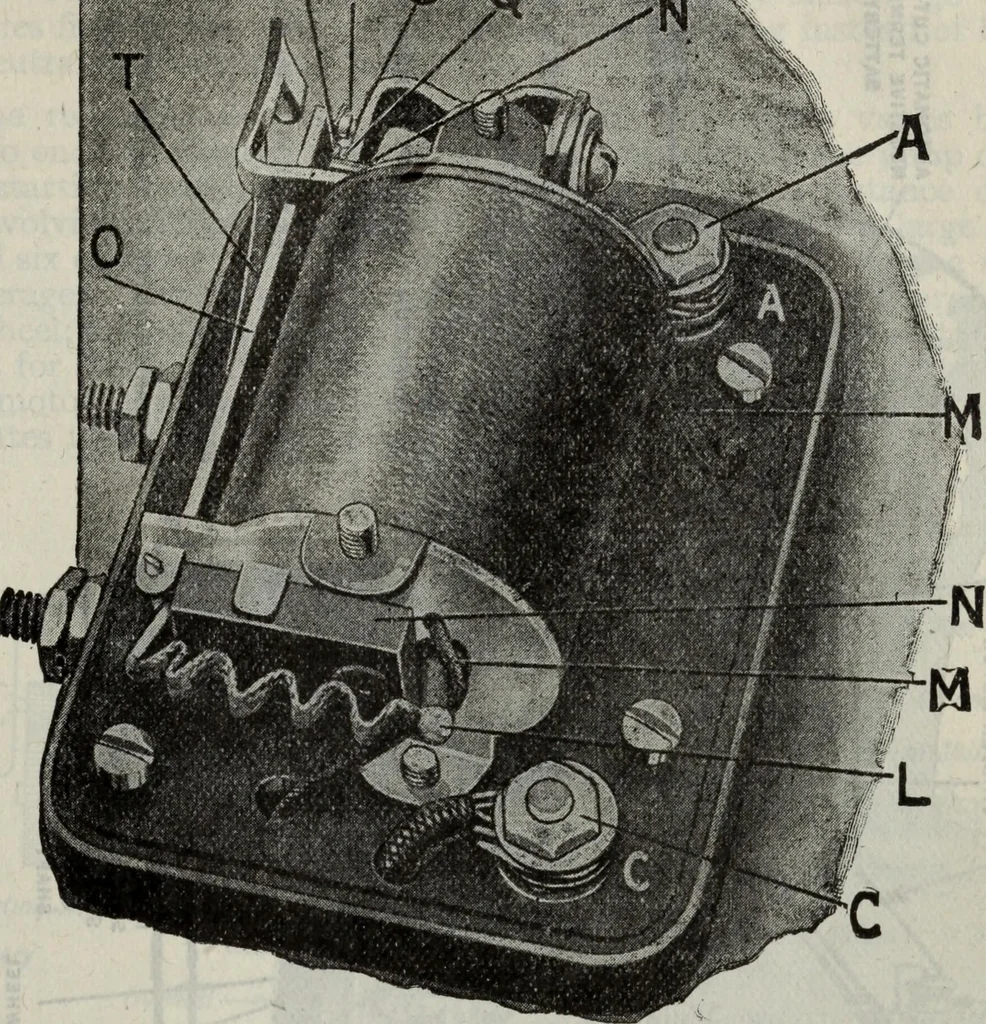

ent from the commutator and furnish thiscurrent for charging the battery through the cut out K. The brushes F and G collect thecurrent from the commutator and furnish this current for exciting the fields. The cutout K is shown in detail in fig. 4,046. A feature of the Westinghouse system is that… … Fig. 4,046.—Wagner cut out of two unit starting and lighting system. It consists of two magnet coils L and M, wound on an iron core N, which attracts and repels an iron lever O.At the end of O are two main contact points P and Q at which the contact between thedynamo and battery is made and broken.…
