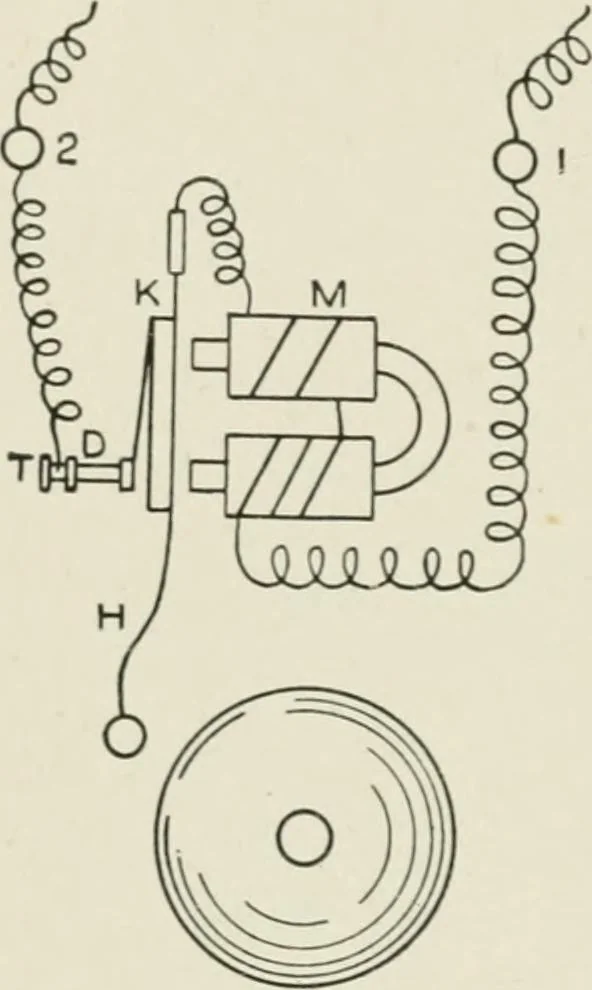

makes contact at I) with the back stop T. Theaction of the bell is as follows: When the circuit is closed throughthe bell a current flows from terminal 1, around the coils of themagnet, through the spring K and contact point D, through theback stop T, to terminal 2. In flowing around the… … Ficr. 8. 226 ELECTRIC BELL WIRING around the electromagiu^t and the cores consequently lose theirattractive force. The armature is then carried hack to its originalposition liy tin- sjtrinj^ K. inakiiiji; contact at I). and the process isrepeated. The haninier will tlins vibrate and the bell…
