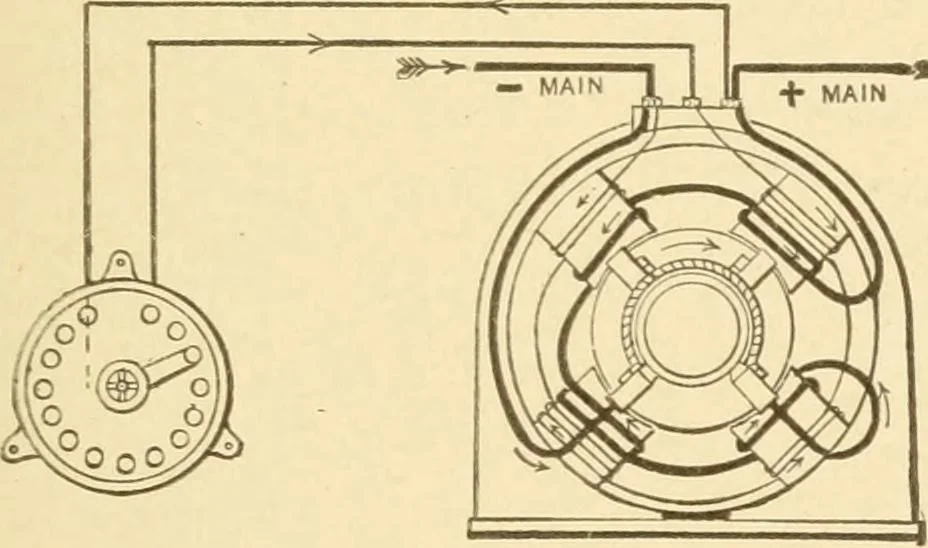

713. BIPOLAR SHVNT GEN-ERATOR, showing the shunt wind-ing on both fields and its connectionto the brushes, with interveningrheostat controller. … 714. FOUR-POLE COM.POUND GENERATOR, showing shunt winding and rheostatconnection. Wiring is successiveon each pole in the oppositedirection for both shunt andcurrent.
