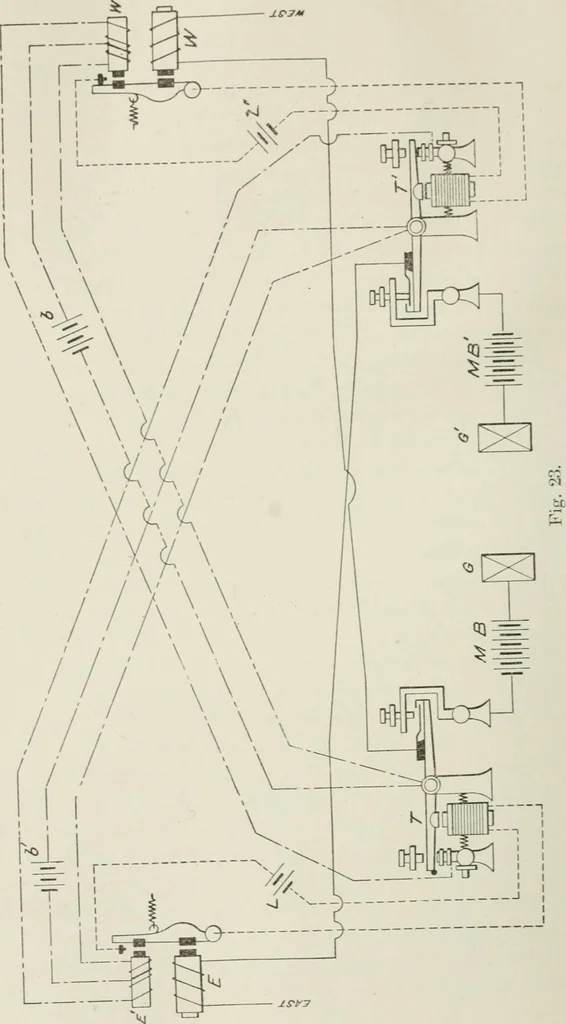

,Figs. 21, 22, and 23, the parts performing like functions are sim-ilarly outlined and lettered. The connections of the main line(full line), and of the local (dotted) circuits are identical with thoseof the Milliken. But, instead of the extra magnets E and AV andthe pendent armatures P and P of… … 296 THE ELECTRIC TELEGRAPH 67 In E and W we have an iron shell enelosingr a straight ironcore and its winding. The combination of shell and core performsthe same functions as the parallel cores in the common tyj)e ofrelay. Trace the wire from battery h to the core W; at a pointjust above the core…
