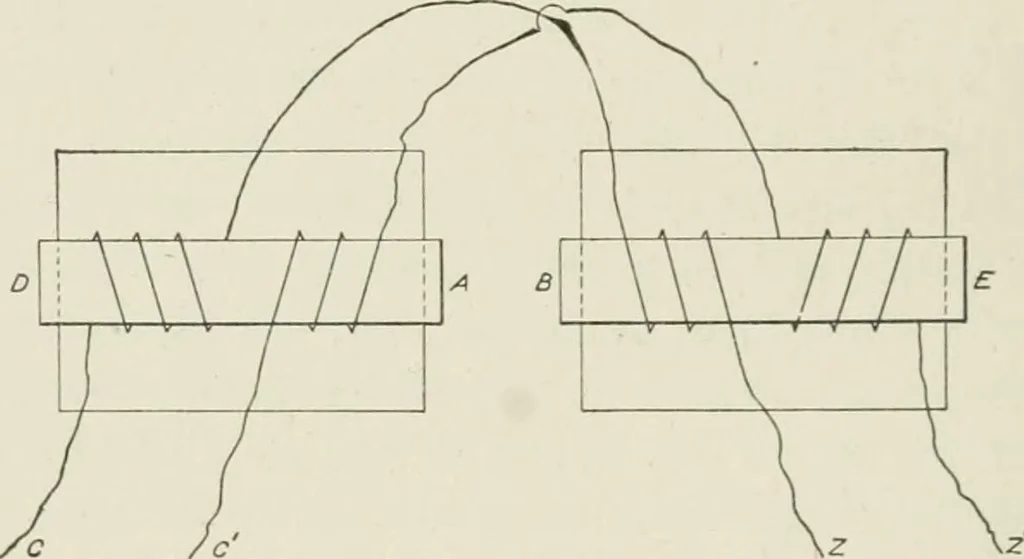

passes anti-clockwise Npolarity is induced in the near end, S polarity in the far end; whenthe current passes clockwise, S polarity is induced in the near end,N polarity in the far end. In the instance shown in Fig. 25 inthe line C Z, there will be formed at A and D, X and S polesrespectively; at B… … Fig. 25. In Fig. 20 let S be the end of a permanent magnet semicir-cular in shape; a strip of soft iron for an armature is so pivotedthat it can move freelv between the stops at the upper end. Inthe armature the induced poles are marked with the small letters11 and ,S, in accordance with the…
