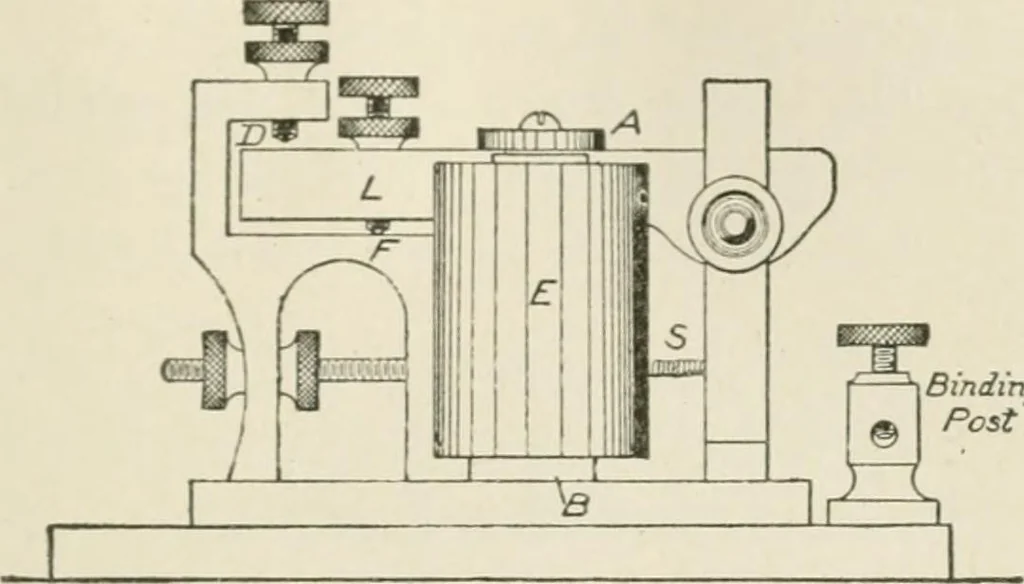

les of this magnet, an armature Aof soft iron is attached to a pivoted lever L of non-magneticmaterial, which Ls controlled by a spring S. When a current 46 ELEMENTS OF ELECTRICITY 39 passes through the coils of this electromagnet, the cores becomemagnetized and attract the armature downward. Just… … BindingPost Fij,^. 33. lose their attractive force. The armature is then carried upwardby means of the spring which acts on the lever to which thearmature is attached. The lever then strikes aofainst anotherstop D and another click is heard. The lange of stroke or playof the lever is adjusted l)y…
