Cyclopedia of applied electricity : a practical guide for electricians, mechanics, engineers, students, telegraph and telephone operators, and all others interested in electricity (1905)
American School (Chicago, Ill.) · Chicago : American School of Correspondence · leaf 71

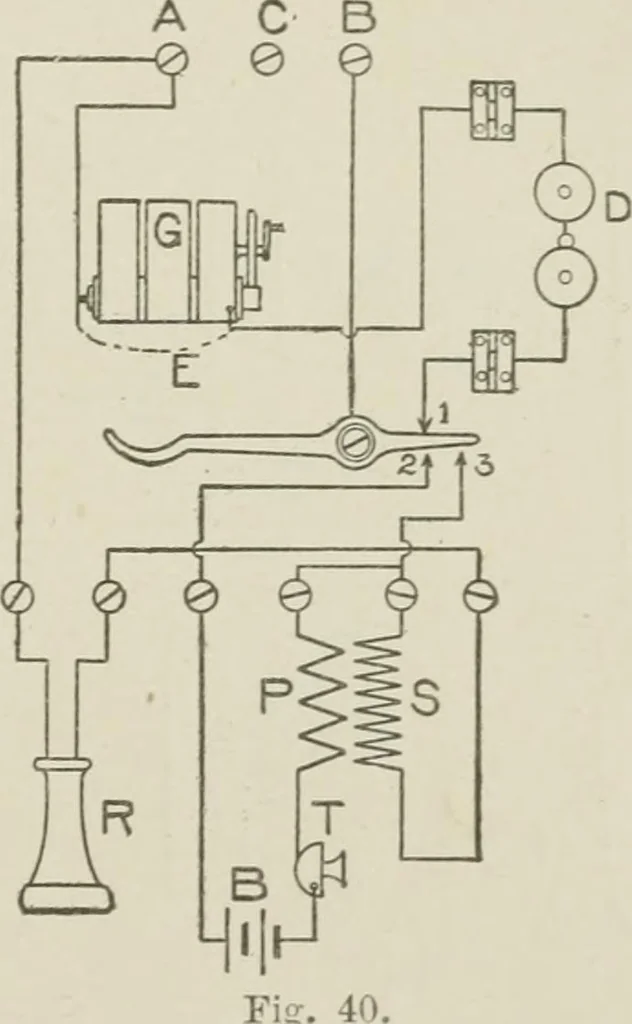

lightning arrester. When the receiver is on the hook theswitch is in the position shown. The generator G and ringer Dare in series across the line, through contact point 1, the gen-erator being automatically cut out by the shunt E, when not inuse. When the receiver is removed, the contact at 1 is… … 59 ELEMENTS OF ELECTRICITY. Below there are three pairs of binding posts, to one pair ofwhich tlie receiver K is connected, to another are connected theterminals of the primary circuit containing the transmitter T, thebattery B, and primary P of the induction coil, while the second-ary S of the…
Electrical engineering
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
