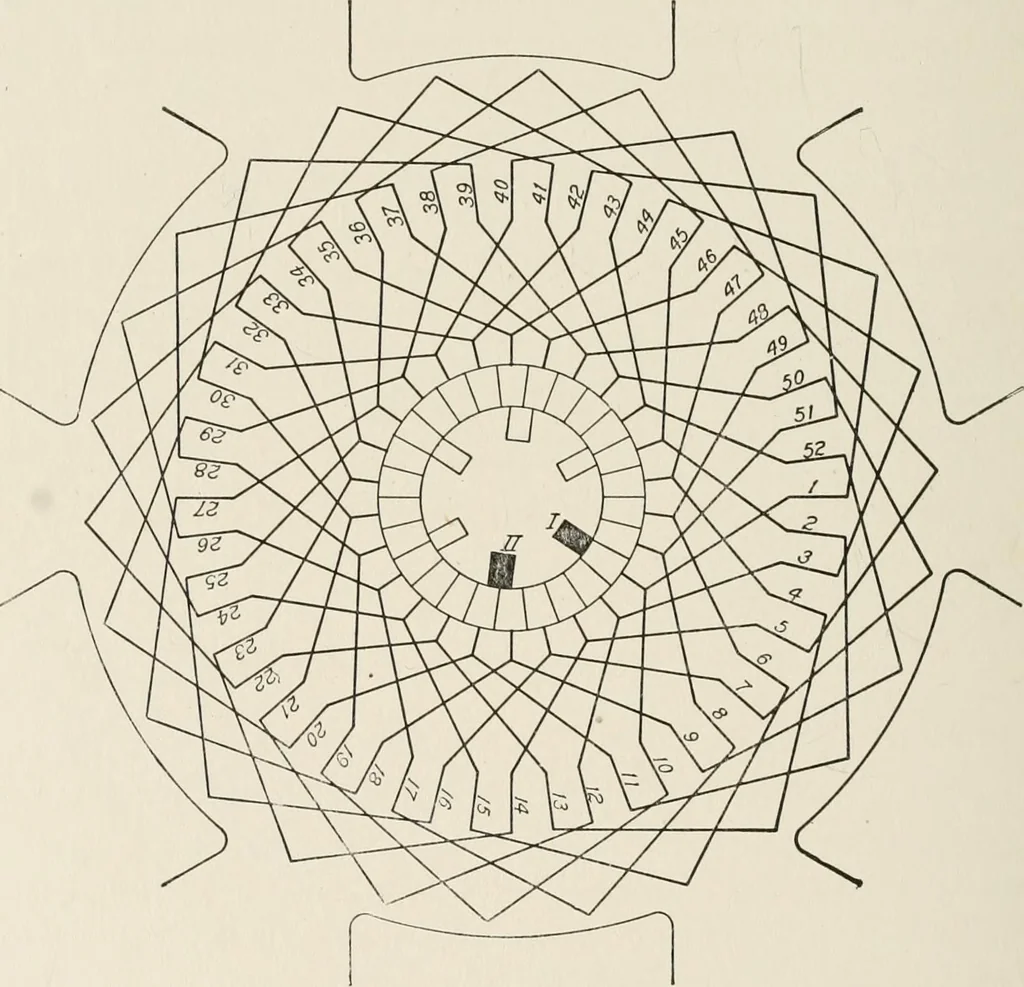

ence we are led along 3 and 8 to g. Followingthrough the complete winding, we arrive at bar a by way of con-ductor 14, after having traversed each conductor once. Thus thewinding closes upon itself after passing through Z -^ 2 windingelements. For this winding, then, we have 2//=+5; yb=+^\ yav-+5;… … Fig. 135. Six-Pole Drum Simplex Wave Winding two inductors per element, the odd inductors will lead from thecommutator to the rear of the armature core, while the even num-bered are connected in the reverse order, or the converse may bethe order of connection. So that in advancing from the…
