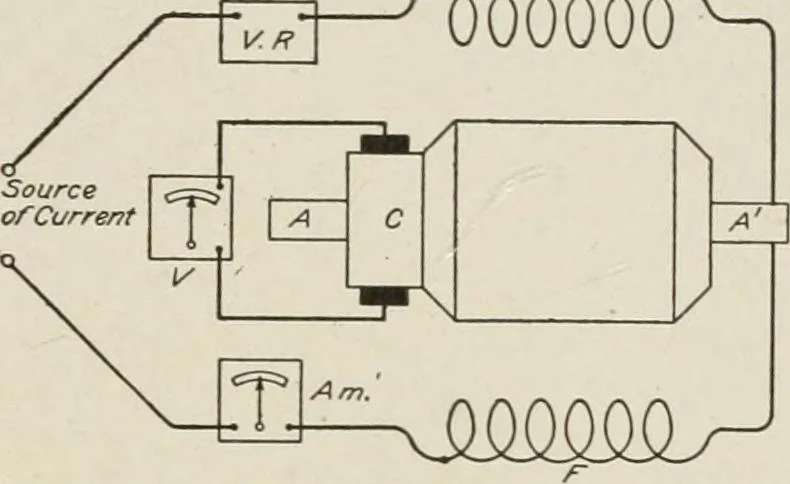

zation curve is really expressed with the co-ordinatesm. m. f. and $, i. e., between the force producing flux and the actualflux resulting. These co-ordinates are somewhat difficult to measuredirectly so that others which are proportional and more easily de-termined are employed. We have seen that… … Fig. 154. Diagram of Generator Connectionsfor Separately Excited Field 2p^zN 10« X 60 X c and in a given machine all factors (in this equation) except N,the speed, and $, the fliLx, are constant. However, if we maintain I20 too 8060 20 Volts ^ /■ / / / / Amp Ix2 res 120lOO6060■4020 3 e 9 12 Fig.…
