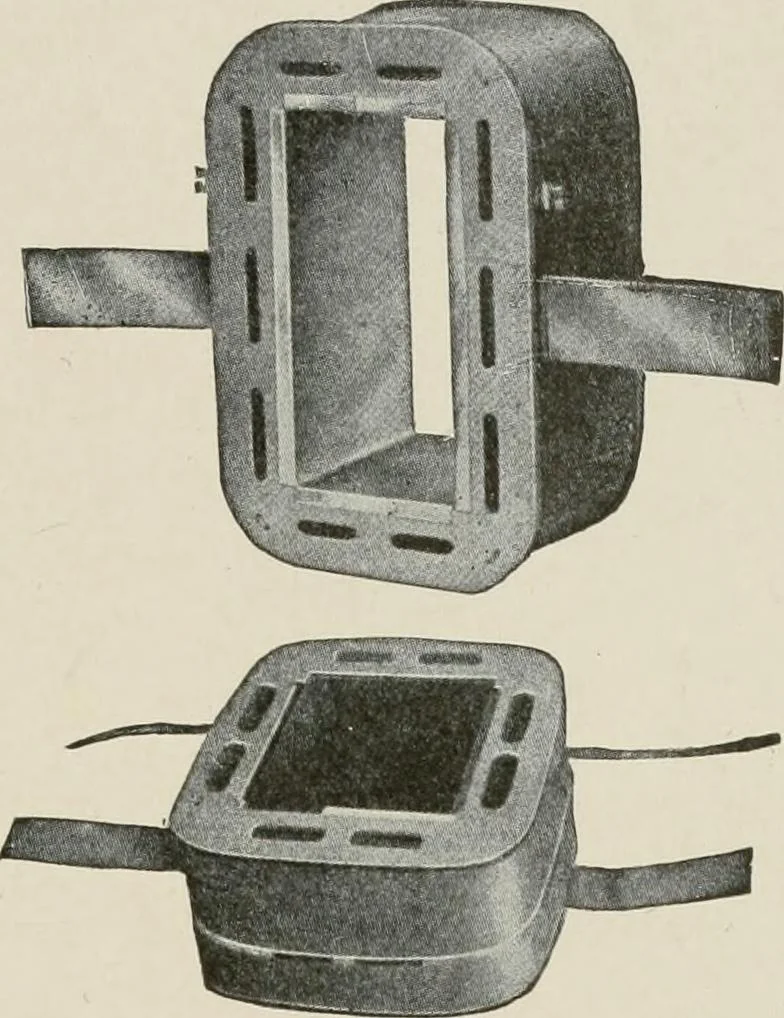

e radial depthof winding is considerable, cannotalways be used, because special fa-cilities are involved. Where edge-strip winding is possible, its use isgenerally advisable. Field-Magnet Bobbins. Theseare made variously of brass with,brass flanges, of sheet iron withbrass flanges, of very thin… … Fig. 175. Rectangular Types ofVentilated Field-Coiis
