Dynamos and motors; a text book for colleges and technical schools (1911)
Franklin, William S. (William Suddards), 1863-1930, Esty, William, 1868-1928 · New York The Macmillan company · leaf 68

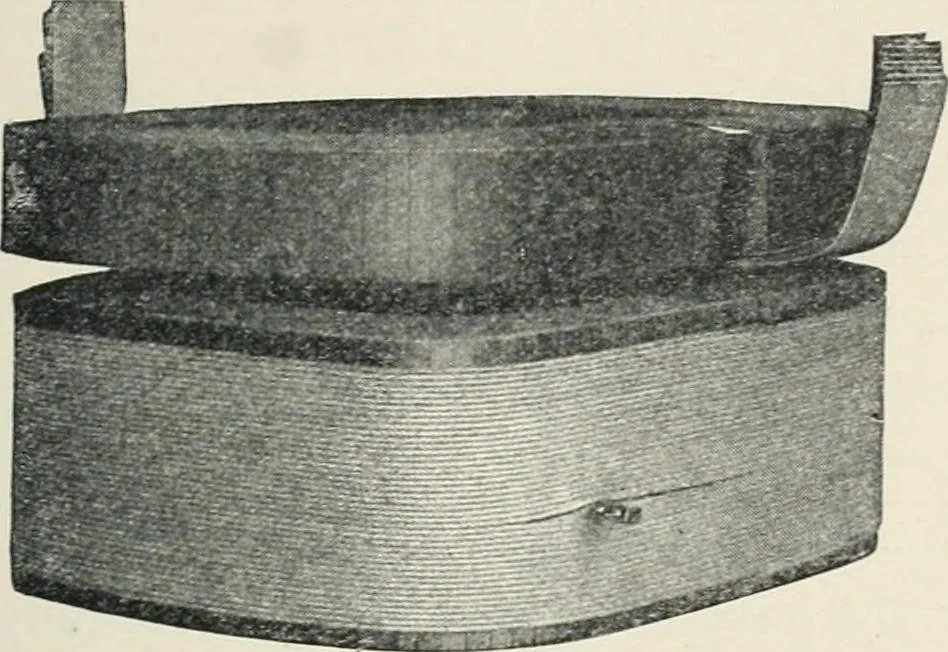

Fig. 39. THE DYNAMO AND THE TRANSFORMER. 57 completed commutator manufactured by the General ElectricCompany. The field coils are generally wound on forms and bound solidlytogether with tape. One pair of field coils for a compound gen- … Fig. 40. erator is shown in Fig. 40 ; the lower part of the figure is the finewire winding (shunt) and the upper part of the figure is the coarse
Dynamos · Electric motors
