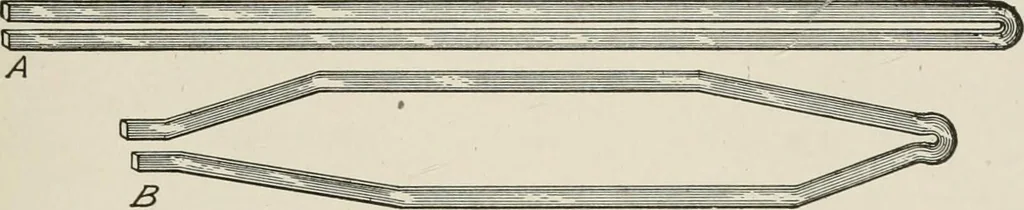

called from this resemblance a false commutator. 185 DESIGN 177 case. Its great advantage lies in the excellent ventilation made pos-sible by the larger cooling surface, and by permitting air to enter theinterior of the armature at the ends. A usual method of supporting the extended… … Fig. 210. Element of Lap Winding Formed from Strip The bar may be opened out as in B, Fig. 210, if the winding is to belap-wound, or as in Fig. 211, if the winding is to be wave-wound.Methods of computing the necessary length of the end-connectionshave been referred to on page 116, so that the…
