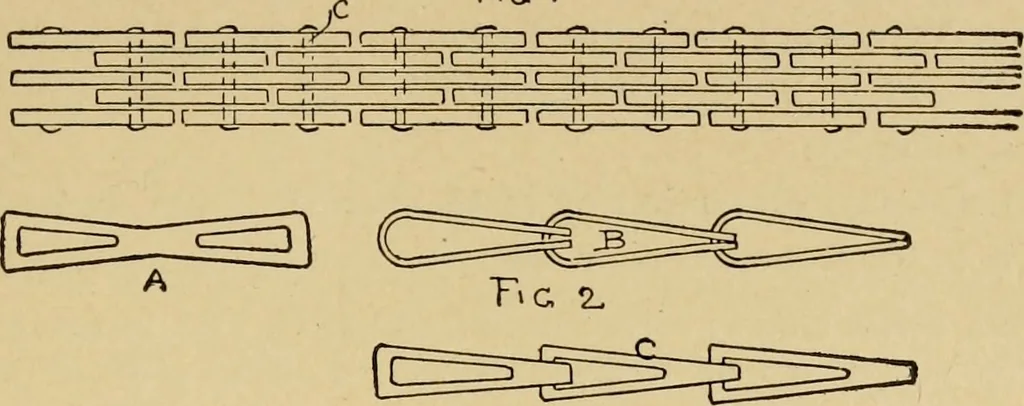

ernatelyin twos and threes; hence, to keep the strength uniformthroughout, those links which occur in twos should be thickerthan those where there are three together. Thus we mighthave alternately two links \ of an inch thick and three links\ inch thick. The requisire size of the pin is determined… … Where the three links occur, it may be assumed that theload is equally distributed throughout, or that there is onethird of the load on each of the three links; then it is evidentthat in the case of the outside link the pin requires to besheared in one place only for rupture to ensue; therefore…
