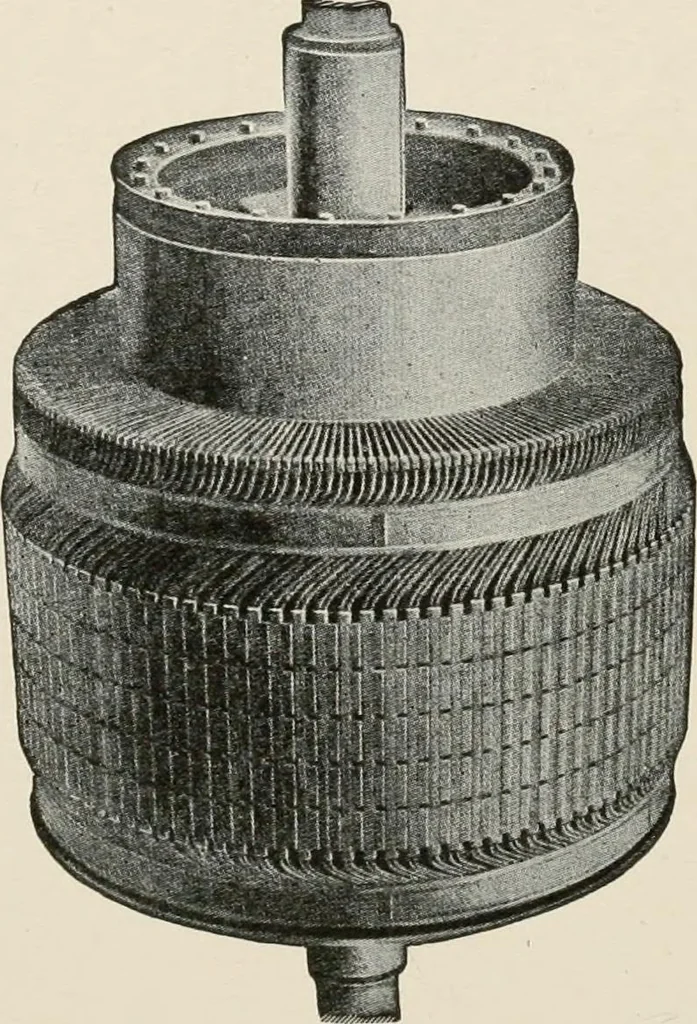

Fig. 212. Armature of Triumph Generator are partly inward and partly cylindrical. This has the effect ofmaking the length of the armature parallel to the shaft shorter than … Fig. 213.| Complete Armature of Crocker-Wheeler CompanyEngine-Type Generator with the pure barrel winding. It requires, however, special formers,and is applicable only to bar-wound armatures. On account of 188 DESIGN 179
