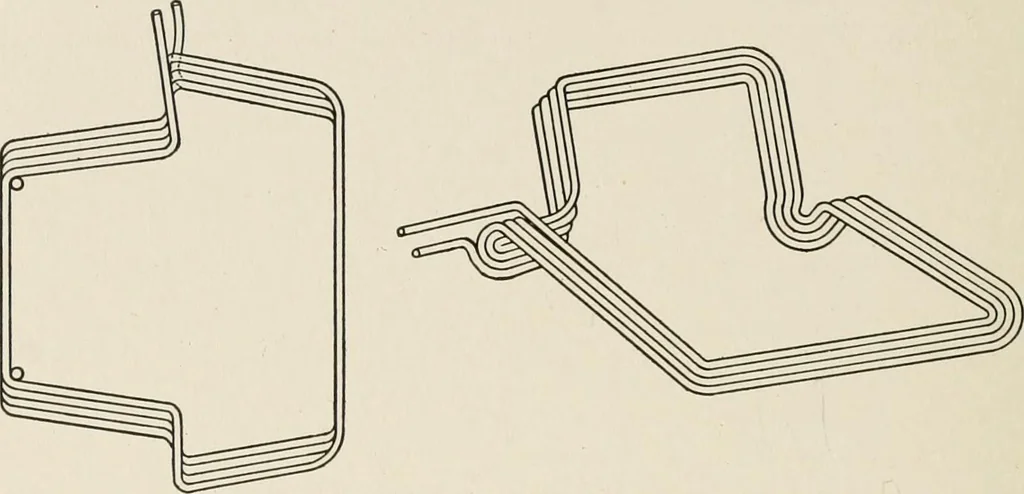

Fig. 216. Evolute- Fig. 217. Barrel-Wound Fig. 218. Bastard-Wound igWound Armature Armature Armature 189 180 DIRECT-CURRENT DYNAMOS better ventilation, it is usual to combine a bastard winding at one endof the armature, with a barrel winding at the commutator end, as in … Fig. 219. Eickemeyer Former-Wound Coil, and Same Bent Up Fig. 215; while Figs. 216, 217, and 218 show the relation of this schemeto the two previously mentioned.
