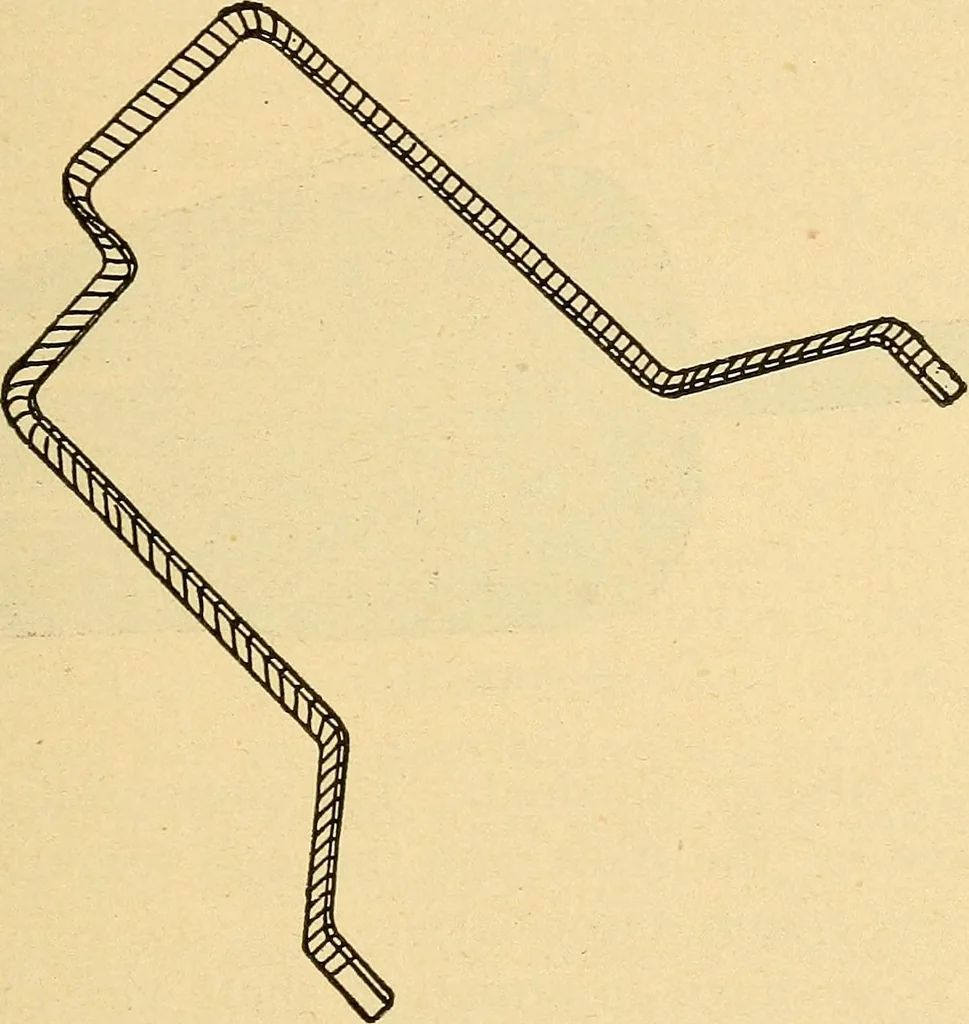

hat a brush of the proper thickness to collect the cur-rent from the commutator would lap over too many ELECTRICITY FOR ENGINEERS 51 bars of the commutator at one time. Each commu-tator bar should be of the size that will present suffi-cient metal for the carrying capacity of the currentgenerated… … FIGURE 23. of 95 per cent, copper it is usual to allow for each iooamperes a commutator bar surface of i% sq. in. The method of electrical connection between thecommutator bar and the coil of the armature varies indifferent designs. Some builders solder the terminalsof the coils to the commutator…
