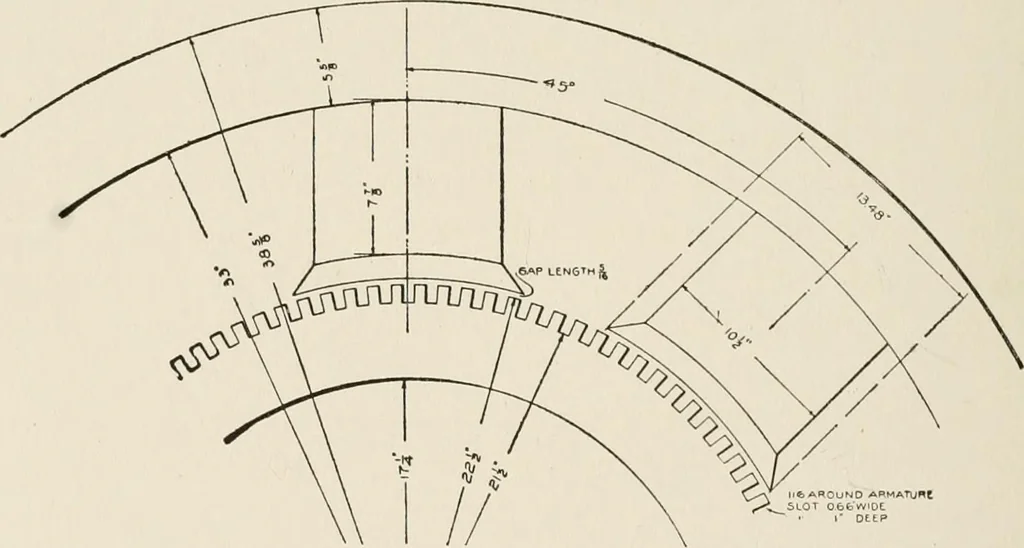

-CURRENT DYNAMOS TABLE XXVFlux>Densities in Armature Cores Type Flux-Density (in lines per square inch) Bipolar drum-coreBipolar ring-coreHigh-speed multipolar ring-coreSlow-speed multipolar ring-core 50,000 to 90,00065,000 to 95,00045,000 to 85,00065,000 to 97,000 conductor in square inches, I… … Fig. 257. Dimensioned Diagram of Magnetic Circuit of Generator Whose Construction is Described in Text core to give an adequate cross-section of iron below the teeth,Fig. 257. The final value of this depends upon the permissibleiron-loss, which limits the flux-density possible. Table XXVgives…
