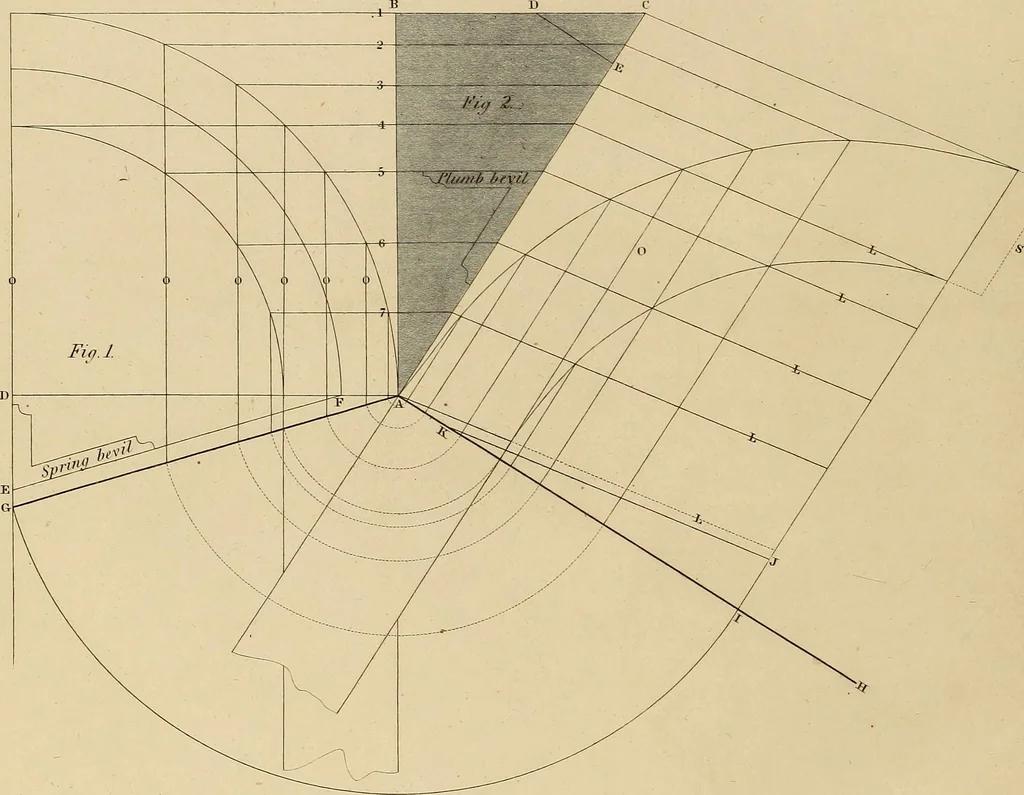

PleUe 58. … HAND-RAILING. 83 PLATE 58. To draw the face mould O. Let fig. 1 be the plan of the rail, and fig. 2, the pitchboard; draw the ordinates 1, 2,3,4,&c, at right angles to A B; place the spring O P, Plate 57, from C to D; draw D E, at rightangles to A C. Make D E, fig. 2, equal to E D, fig. 1; draw…
