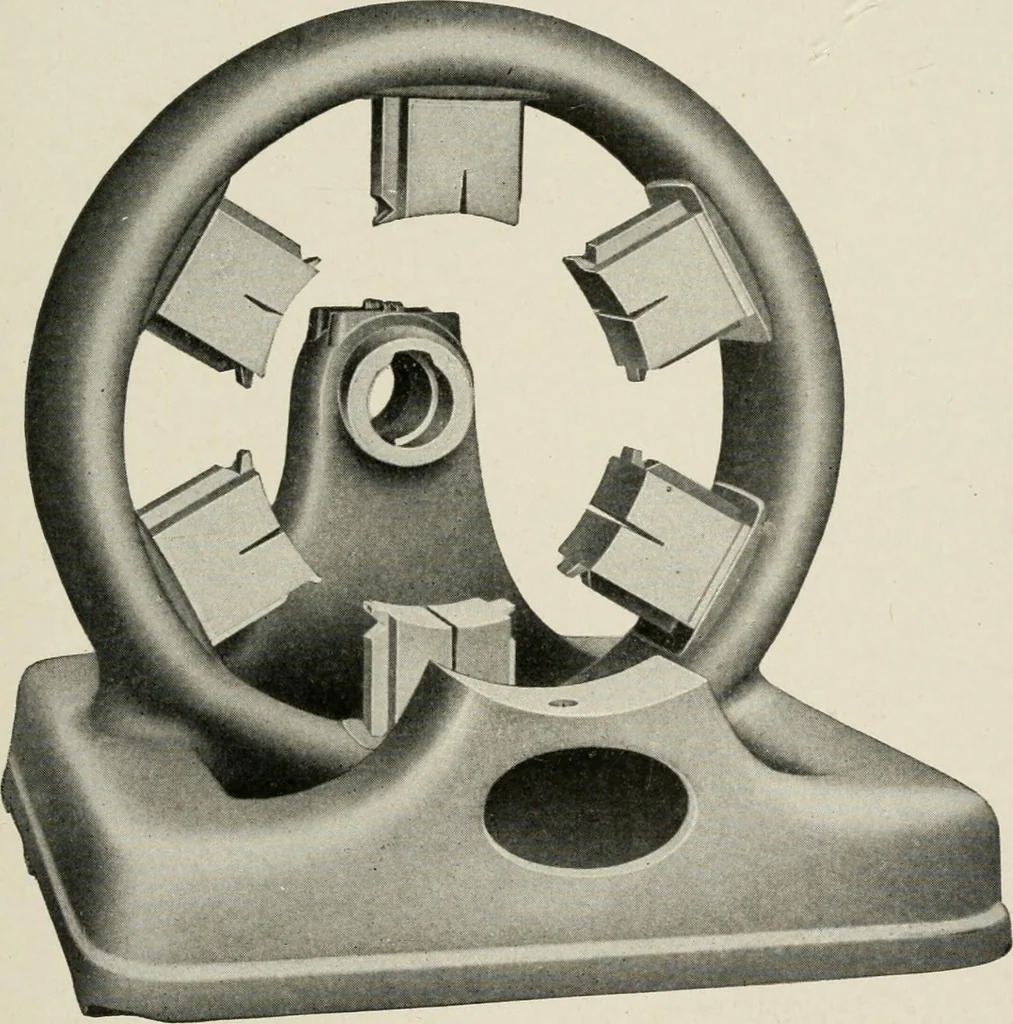

nd 282 TYPES OF GENERATORS AND MOTORS 37 and c, Fig. 40. These are riveted together, slotted to about one-half their length, as shown at n, and provided with grooves m forholding them securely in the frame. After being cast welded intothe frame, they are machined and, in the larger sizes, fitted… … Fig. 44. One-Piece Frame of Type L F GeneratorCourtesy of Fort Wayne Electric Works these details, including the method of shifting the brush yoke. Thearmature is of the usual ironclad, one-piece coil, w^ell-ventilated type.A partly wound armature is shown in Fig. 43. Belt-Driven Types. Fort Wayne…
