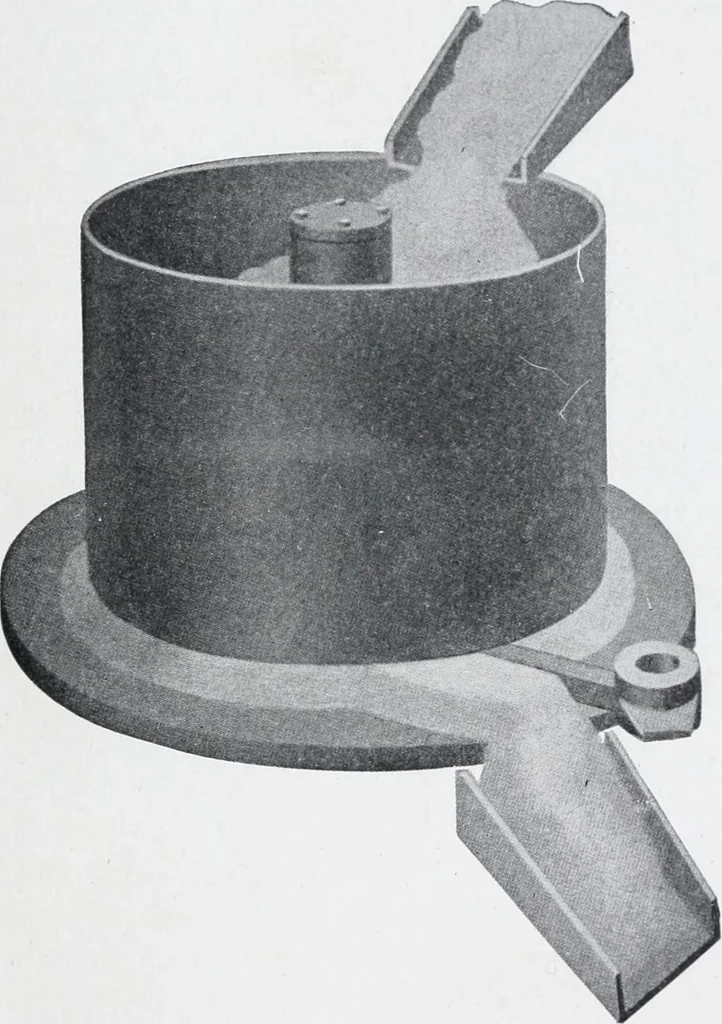

rcumference. The knife can be adjusted to extenda proper distance into the material, and to peel off, at each revolution 292 MASONRY AND REINFORCED CONCRETE 277 of the table, a certain amount, which falls into the chute. Thematerial peeled off is replaced from the supply contained in a bottom-less… … Fig. 130. Trump Measuring Device. less distance into the material. The swing is controlled by a screwattached to an arm cast as part of the knife. A micrometer scale,with pointer, indicates the position of the knife. When it is desiredto measure off and mix three materials, the machines are made…
