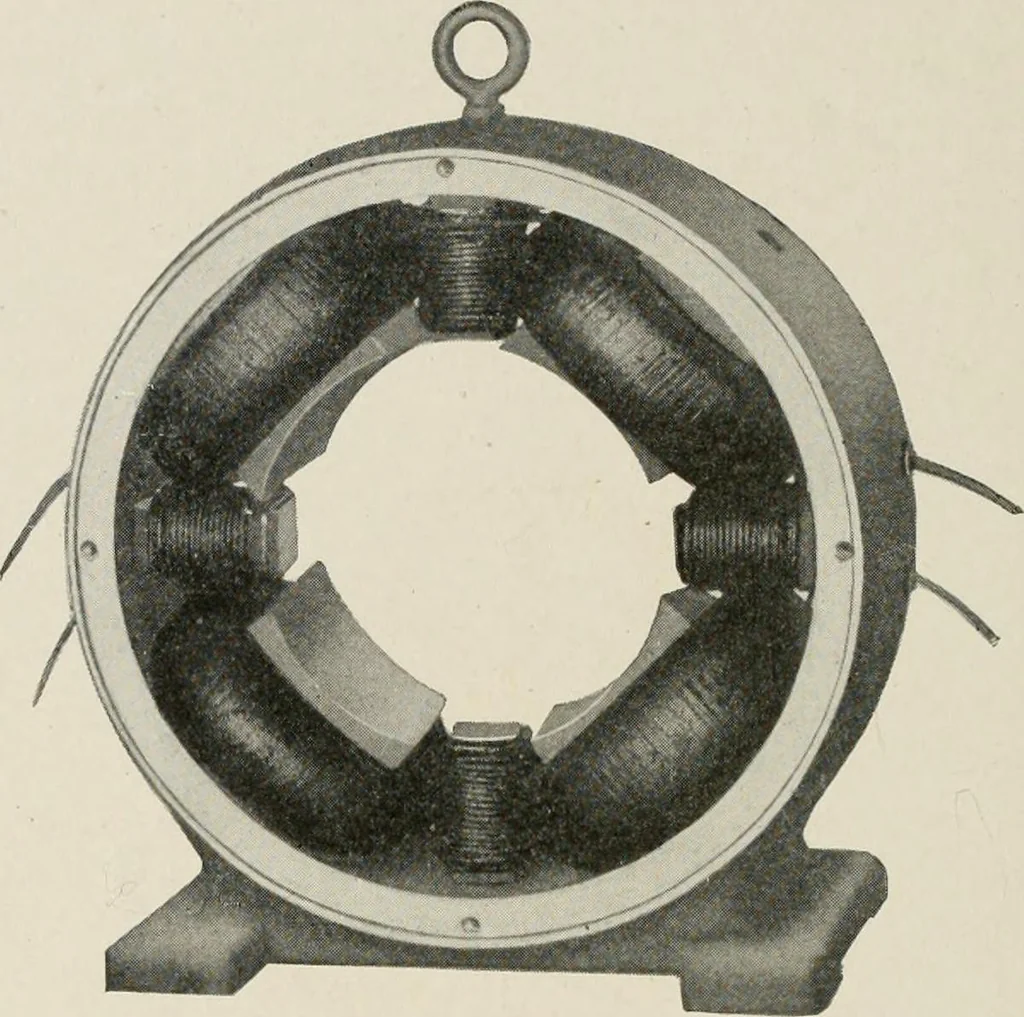

on 110-, 220-, or 500-volt circuits and giving speed variations of 6 to1, 5 to 1, 4 to 1, 3 to 1, 2 to 1, or H to 1. The field yoke is of thebest electrical steel cast in one piece. The main poles are made ofcast electrical steel or of laminated steel and are bolted to the fieldyoke. They are… … Fig. 86. Electro-Dynamic Motor Showing Interpoles
