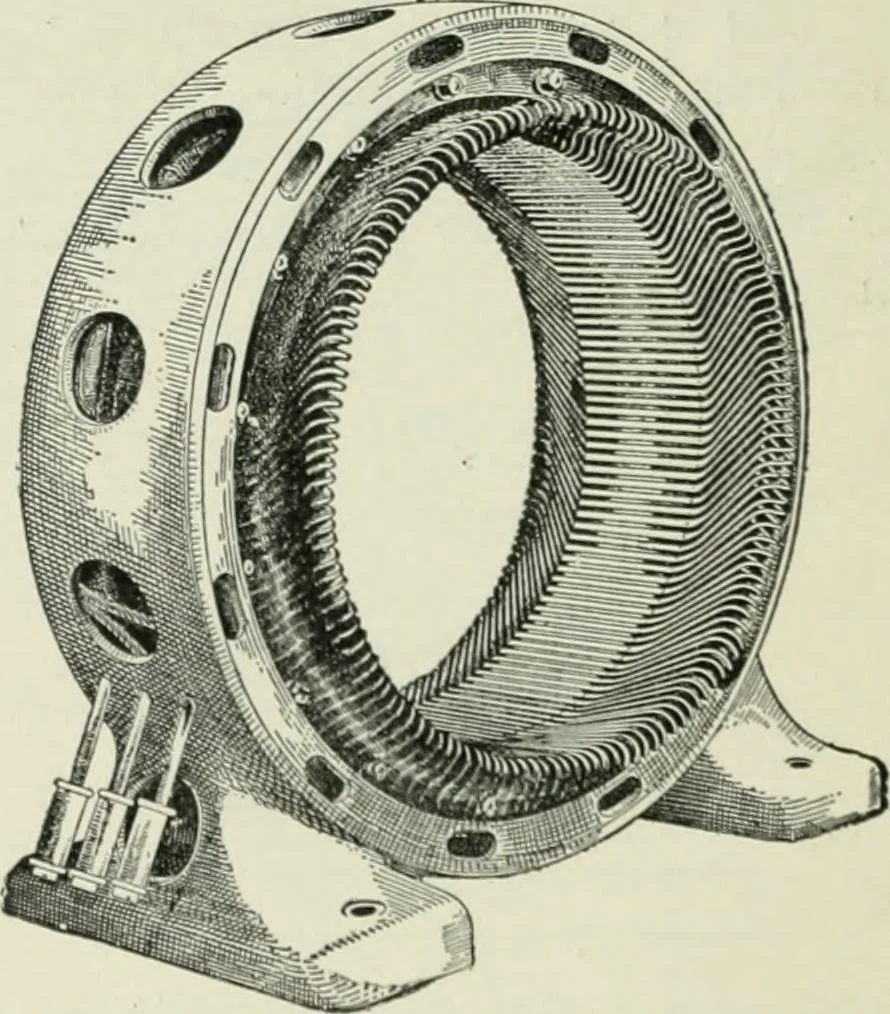

) of two major parts, the stator and the rotor. Thestator, shown in Fig. 448, is the stationary element and hasplaced in slots, in tlie inner periphery of the core, coils whichare grouped into a winding connected to the power circuit. … Fig. 448.—Tndiicf ion-motor stator. TIic Iolor, Fig. 449, of the s(|uirrel-cag( type is liuilt up of alaminated iron core, slottoil on its outer perii)hery. In theseslots are i)laced copper hais which are connected to rings ateach end of the core, thus forming a closed winding, as shown.Til llie…
