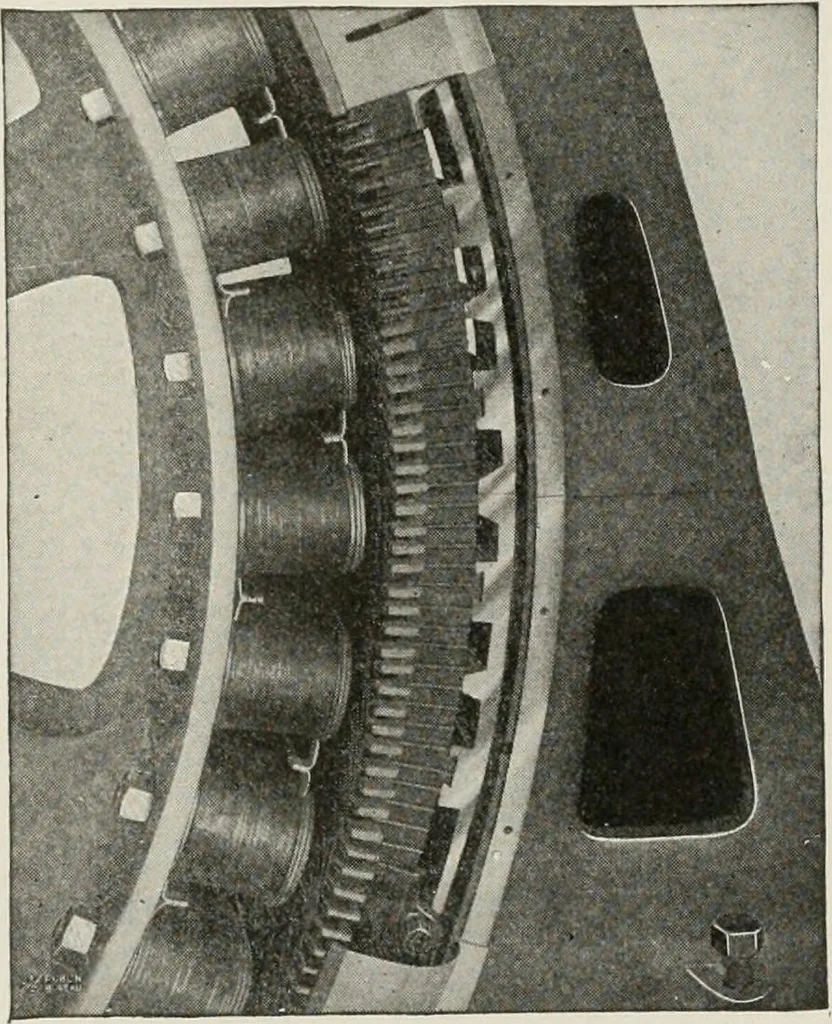

y of General Electric Company driven types, the stationaryarmature consists of a cir-cular cast-iron frame, sup-porting a laminated sheet-iron core in which the arma-ture windings are embedded.The frame is either of thebox type. Fig. 138, or of theskeleton type, Fig. 139. Thelaminations are stacked… … Fig. 140. Section of U. E. Alternator Showing Method of Dovetailing Core Laminations to Stator Frame 357 112 TYPES OF GENERATORS AND MOTORS
