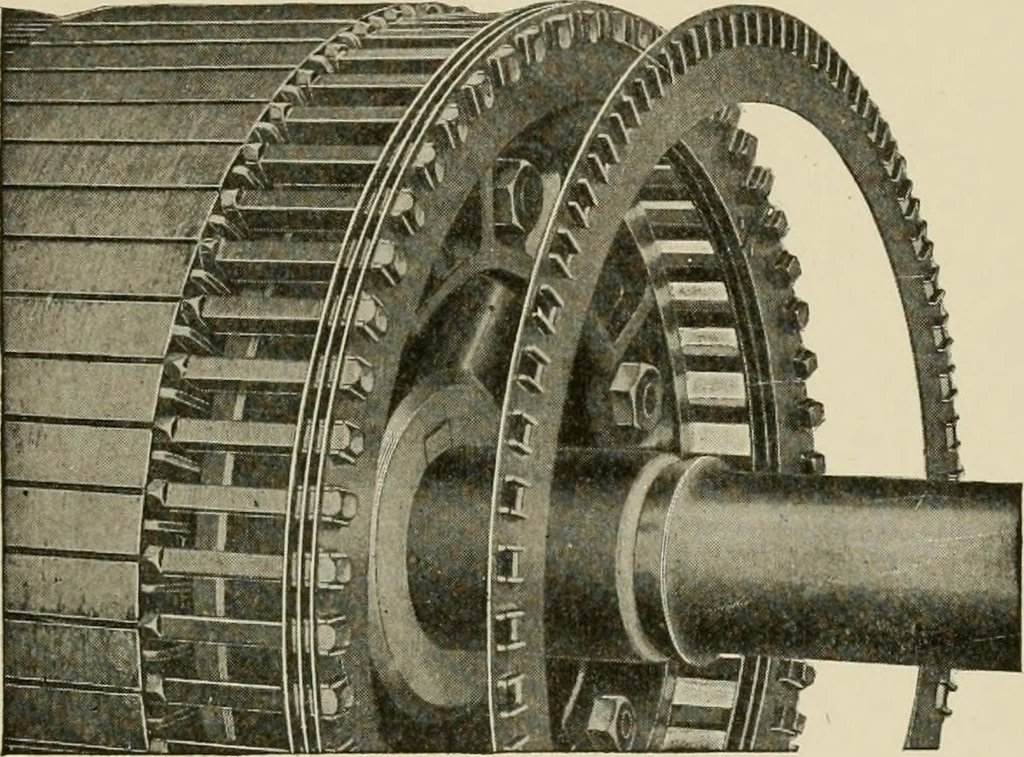

ig. 47 shows an exploded view ofa motor of the type described. The polyphase currents in the stator windings produce arevolving magnetic field. This in turn induces currents in theshort-circuited winding on the rotor, which, on account of thereaction with the revolving magnetic field, causes tlie… … Fig. 46. Showing End Construction of Squirrel-Cage RotorCourtesy of General Electric Company induction-motor rotor never can revolve at exactly the same speedas the magnetic field of the stator; that is to say, it cannot attainsynchronous speed. The difference between the speed of the rotorand the…
