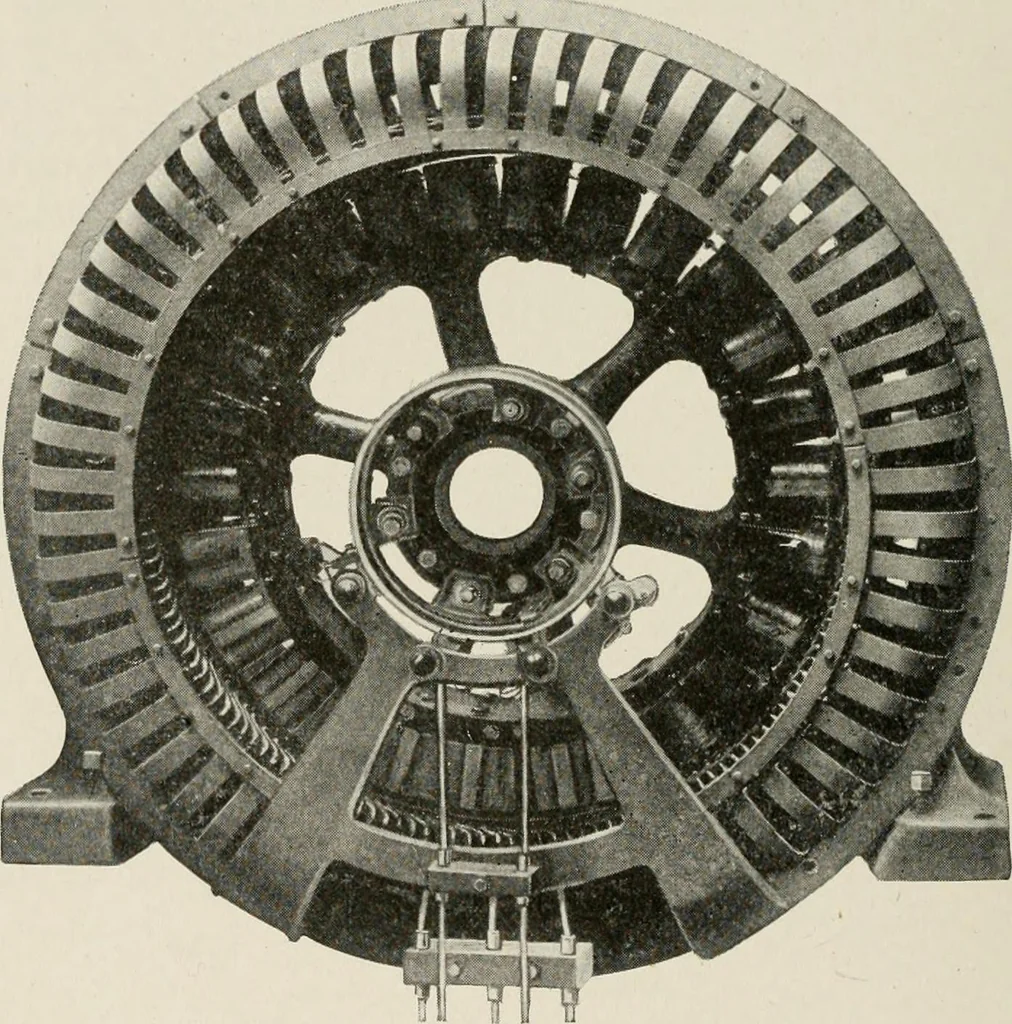

OF GENERATORS AND MOTORS larger ones being split horizontally. Feet with ample bearing sur-faces are cast upon the frame; shoes and slide rails permit adjust-ment of position as shown in Fig. 161. The armature core is builtup of punchings or laminations of thin sheet steel of high permea-bility,… … Fig. 160. Westinghouse Type E, 75 K. V. A. Generator Showing Collector End Ventilating finger plates of sheet steel are assembled with the lam-inations to form suitable air ducts. Finger plates of malleable ironare used at each end of the core for supporting the teeth. Theseplates are of greater…
