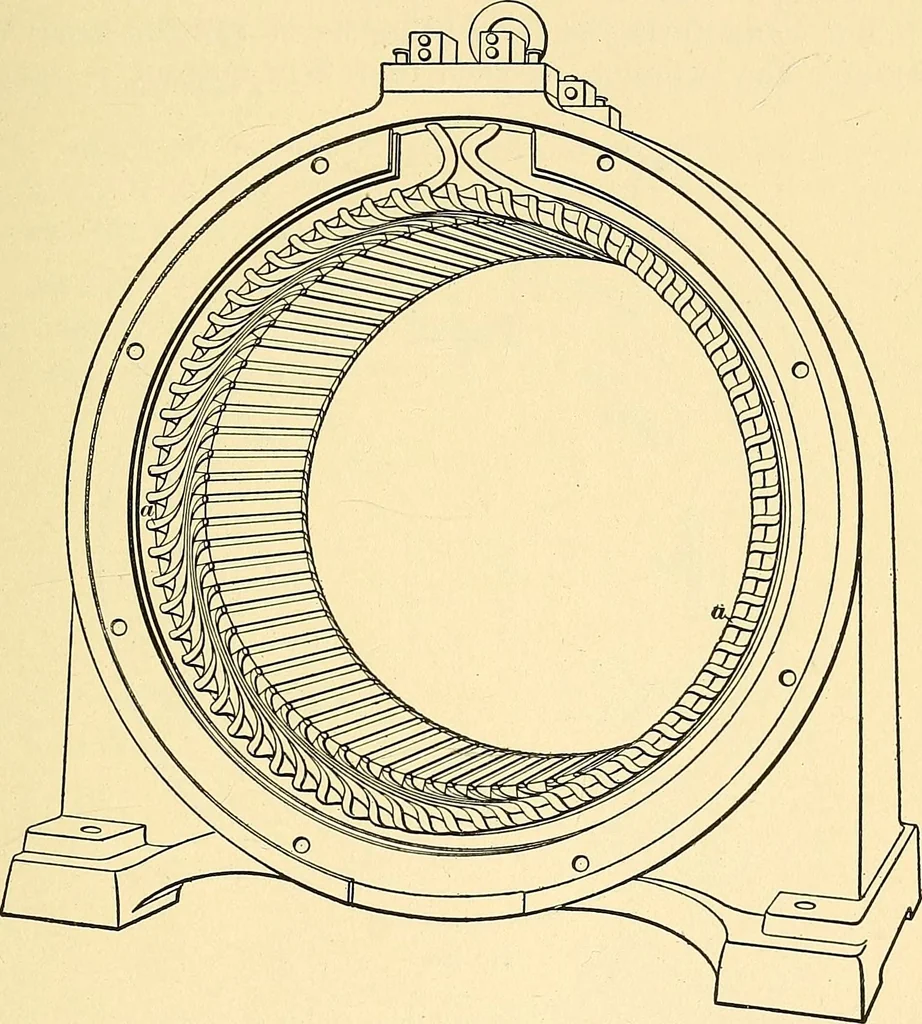

f an induction motoris almost exactly the same as that on the armature of asynchronous motor. The field structure is built up of diskswith teeth on their inner circumference, which form slots CURRENT APPARATUS. 2717 when the core is assembled. The coils are placed in theseslots, forming a winding… … Fig. 1568. very much the evenly distributed arrangement of coils on acontinuous-current armature. Fig. 1568 shows a finishedfield for an induction motor. The coils are seen at «, adistributed evenly around the inner circumference. 4041. The action of the out-of-phase currents in pro-ducing a…
