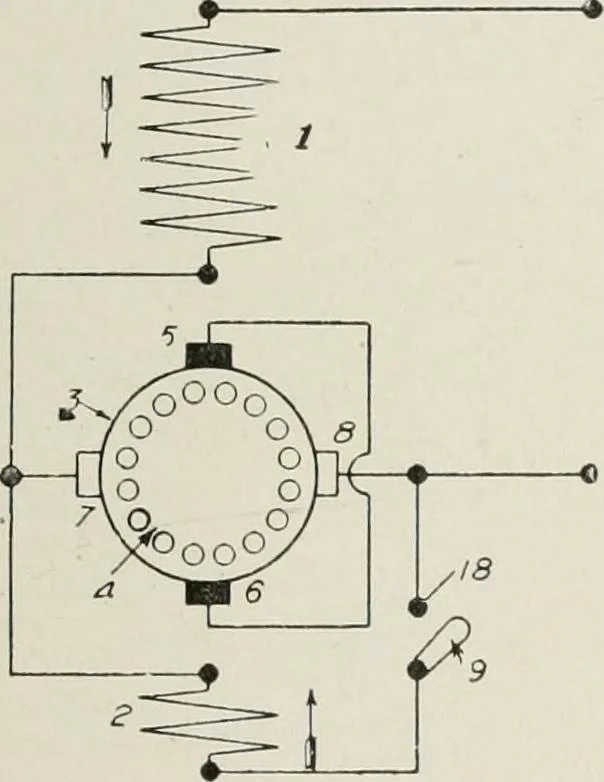

xiliarywinding 3 is of the usual commuted type, and is connected to astandard form of horizontal commutator and occupies the upperportion of the rotor slots. Between the two is placed a magneticseparator in the form of a rolled-steel bar. Two sets of brushes are provided, as indicated in Fig. 203.… … RE TAINIIiQ \A/£DGE — COMMUTED WINDiriQ{3) - MAGNETIC SEPARATOR-SQUIRREL CAeC (4) Fig. 203. Diagram of Wagner Stator Windings Fig. 204. Section Showing Construction ofWagner Rotor is connected in series with it. The auxiliary stator winding % ispermanently connected to one auxiliary brush 7, and is…
