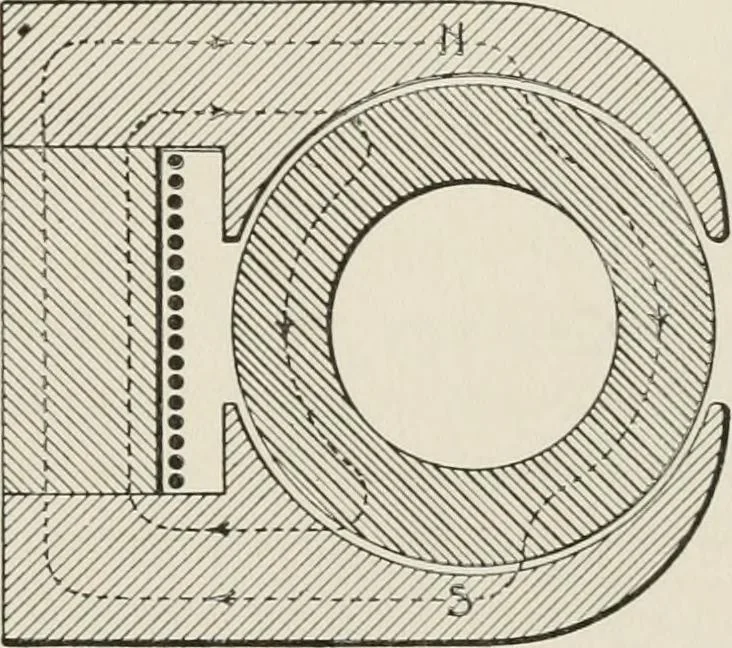

Fig. 90. Over-Type BipolarDynamo … Fig. 91. Single Exciting-Coil TypeBipolar Dynamo latter type produces an unsymmetrical machine, and, in addition,the entire base and bearings are connected to one of the pole-pieces, 77 68 DIRECT-CURRENT DYNAMOS exposing a large surface which materially increases the magneticleakage. This type is…
