Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 183

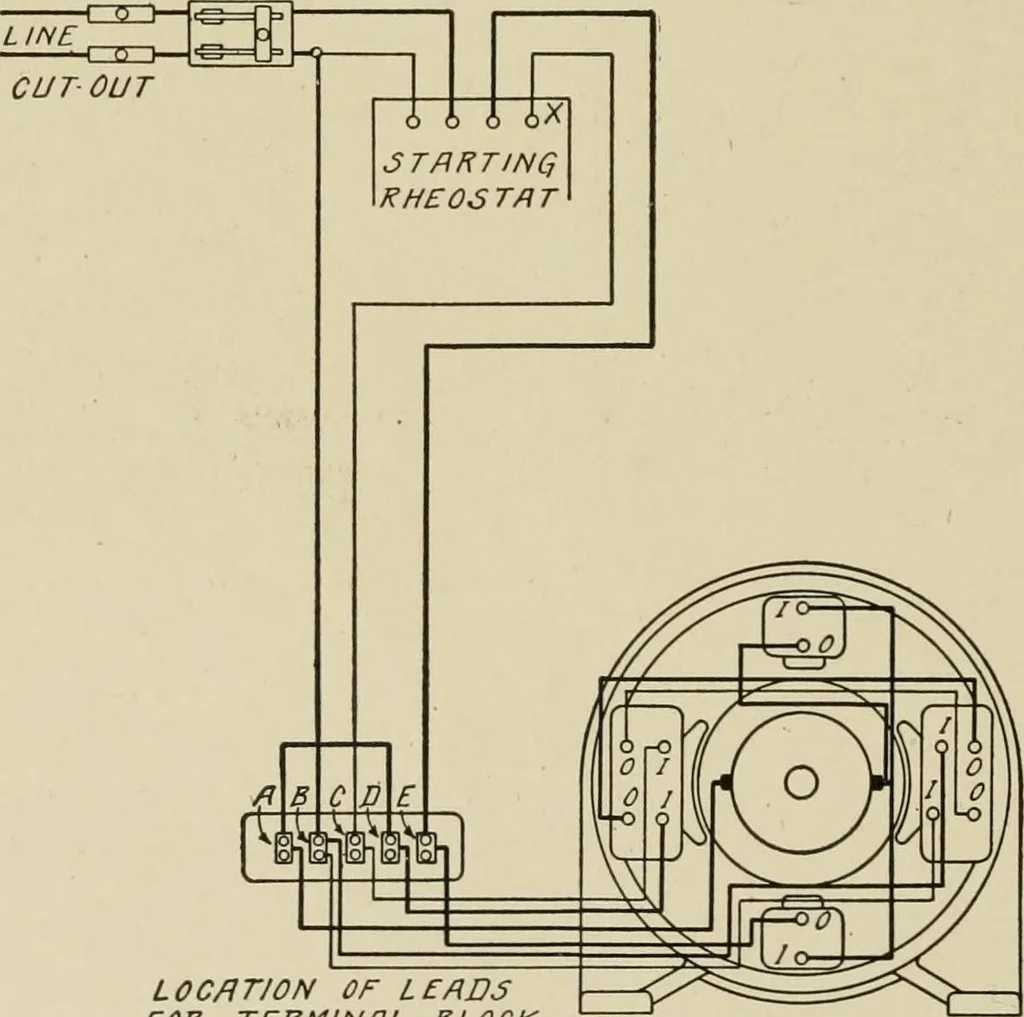

LOCATION or LEflnS FOU TEKMINflL BLOCKMOTOK CONNECTED FOR COUNTER CLOCKWISE KOTMTJON Fig. 31. Wiring Diagram of Rotation Connections for Commutating Four-Pole Sliunt Motors SWITCH … LOCATION OF LEMDSFOR TERMINAL BLOCK. MOTOR CONNECTED FOR COUNTER CLOCKW/3E ROT/RT;oN Fig. 32. Wiring Diagram of Connections for Commutating-Pole Bipolar Compound Motors 162 MANAGEMENT OF DYNAMO-ELECTRIC MACHINERY 41 and non-commutating-pole types of generators apply to similartypes of motors. The…
Electrical engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
