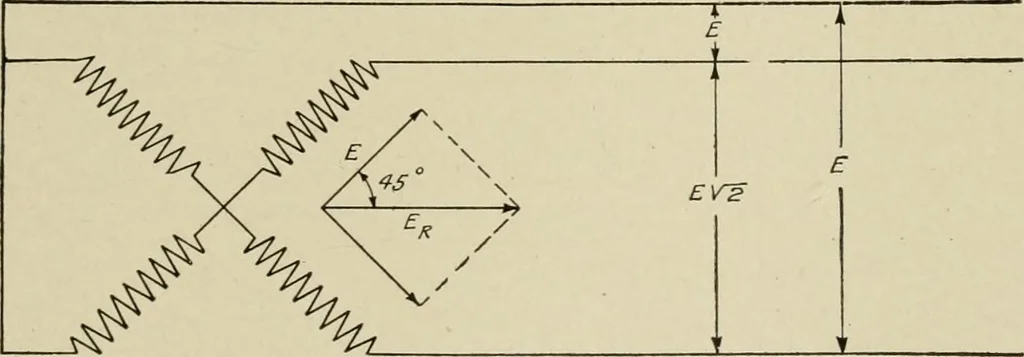

ing modern practice, since it is so little used. Fig. 30. Wiring Diagram for Two-Phase Four-Wire Generator with ArmatureWindings Ninety Degrees Apart Two-Phase Type. A two-phase alternator has two armaturewindings arranged so that their voltages are 90 degrees out ofphase. Fig. 3.5 shows the two… … Fig. ,7. Wiring Diagram for Two-Phase Generator Arranged for Three-Wire System ings represented 90 degrees apart. The voltages on phase A andphase B are equal. Two-phase generators are sometimes arranged with their twosets of armature windings connected together, as shown in Fig.37. In this case…
