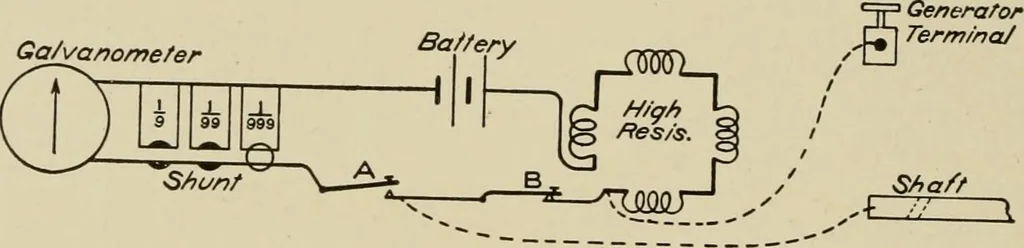

normal voltage. Any value over one megohmin such cases is usually high enough. It is therefore beyond therange of ordinary Wheatstone bridge tests; but two good methodsare applicable, the direct-deflection method and the voltmetermethod. Direct-Deflection Method. The direct-deflection method… … Fig. 76. Wiring Diagram for Direct-Deflection Method and keys, as shown in Fig. 76. The galvanometer should be shuntedwith the 1/999 coil of the shunt, so that only 1/1000 of the currentpasses through the galvanometer, the machine being entirely dis-connected. The keys A and B are closed and the…
