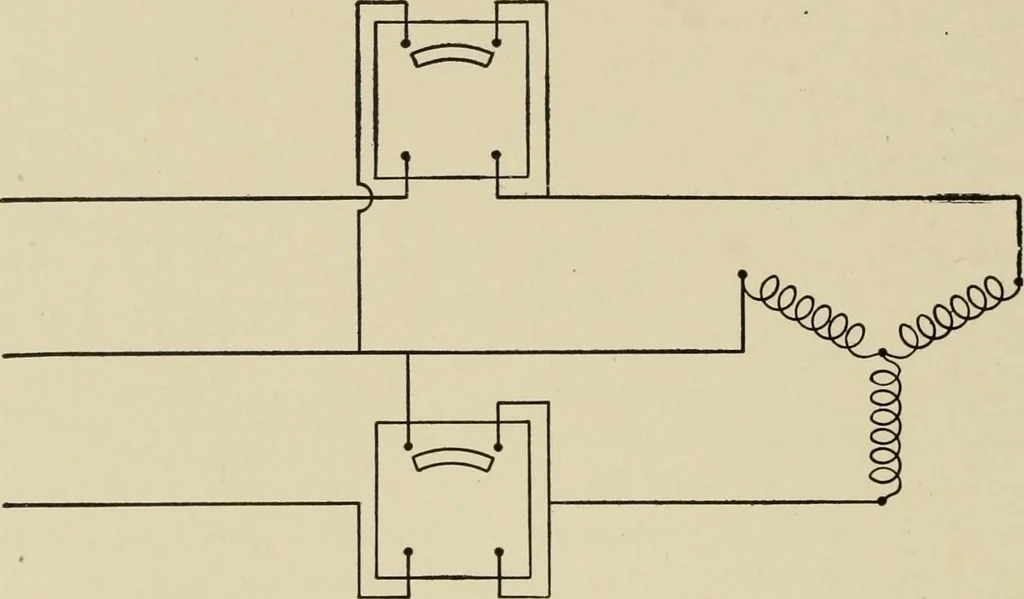

of the thick-wire coil (current-coil) of the wattmeter; and EF, the voltage- or pressure-coil ter-minals. When connected as above indicated, the wattmeter in-dicates directly in watts the power supplied. Two-Phase Circuit. In the case of a two-phase system, v/here 237 106 MANAGEMENT OF… … Fig. 87. Power Input Diagram for Tbree-Phase Circuit, Star-Connected Fig. 86,* where A B forms a common return, the wattmeters areplaced as indicated, care heing taken to place the current-coils in
