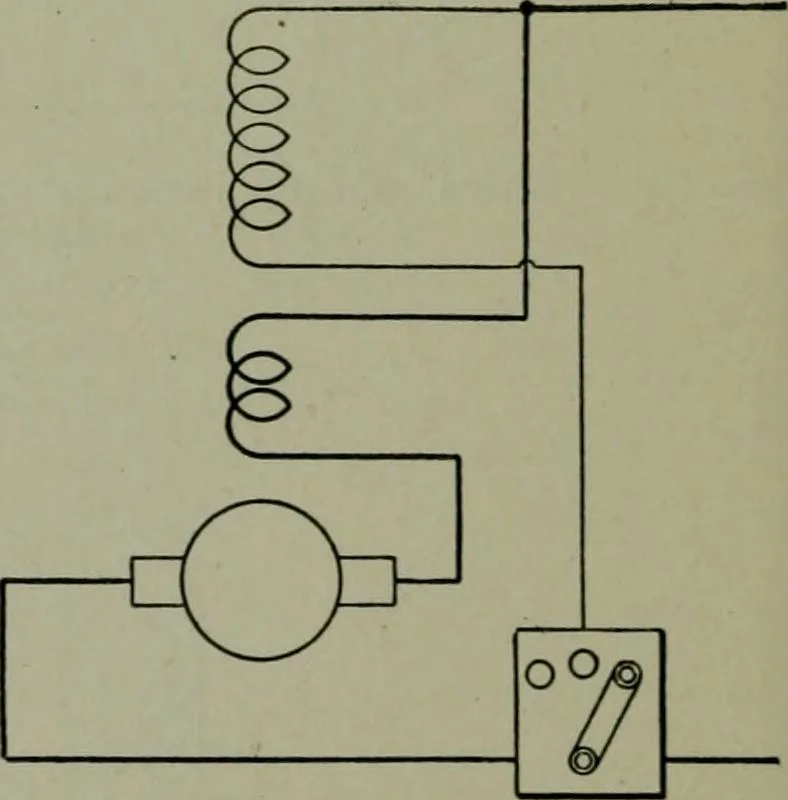

Fig. 1-44. Fig. 145. Fig. 144.—Shunt motor. Speed regulated by inserting resistance in series with the fieldwinding. Increase in resistance increases speed. Fig. 145.—Plain compound motor. Speed characteristics depend upon design. Seriescoil tends to decrease speed with load when connected to…
