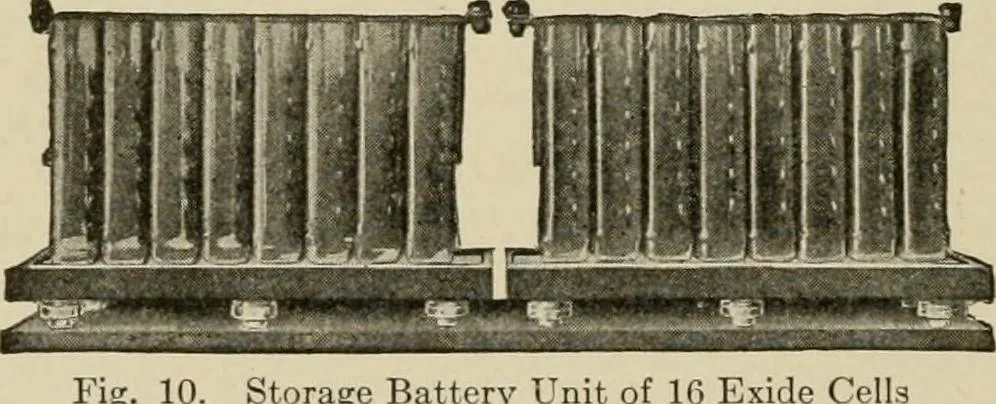

Fig. 9. 32-Volt Compound-Wound GeneratorCourtesy of Fairbanks, Morse & Company … 10. Storage Battery Unit of 16 Exide CellsCoiirlesij of Fairbanks, Morse & Company length to provide for the installation of the engine and dynamo witha distance of about 8 feet between the centers of their shafts. Storage Battery. The storage battery. Fig. 10, consists of 16cells, the elements…
