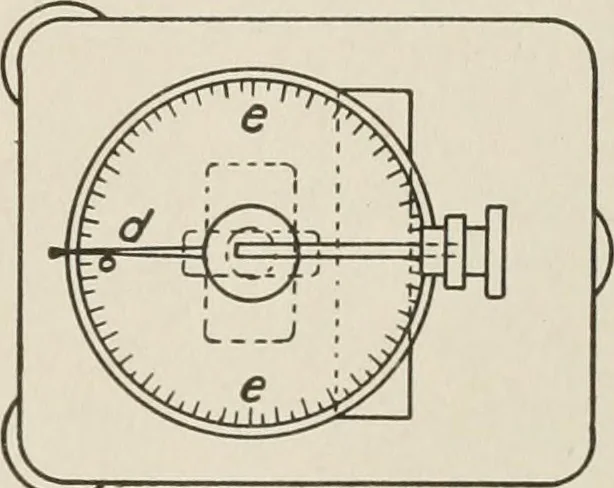

der to bal-ance the above-mentioned force; or (b)by allowing the force to turn the mov-able coil, thus moving a pointer over adivided scale. In the Siemens electro-dynamometer method (a) is used; while /in many commercial forms of electrody- n^^?namometer method (b) is used. ^*- ^- The essential… … Dial of Siemens Elertro-dynamometer 83 74 ALTERNATING-CURRENT MACHINERY the movable coil B is hung by a thread, the plane of coil B beingat right angles to the plane of coil A. The terminals of the mov-able coil dip into cups of mercury a a, and the current to bemeasured is sent through both coils…
