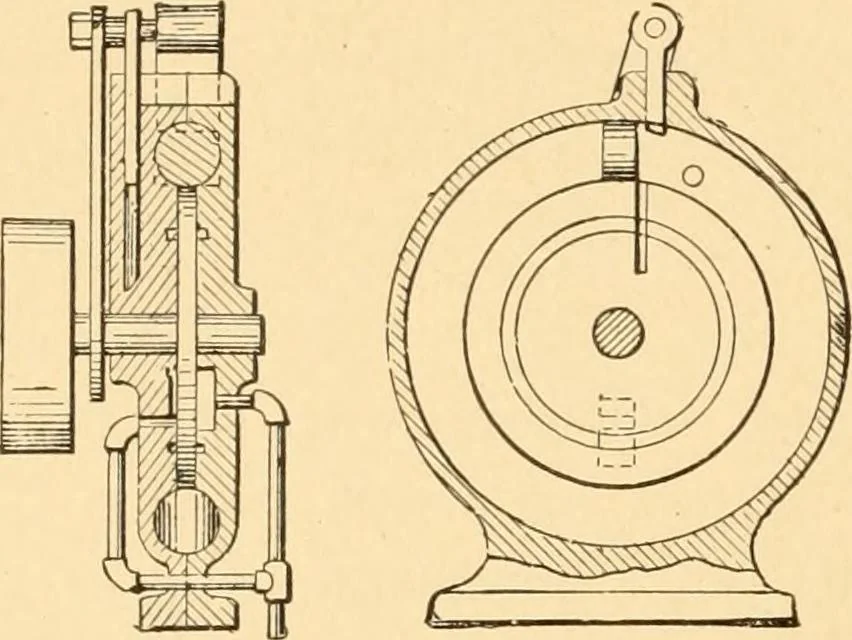

io8 STEAM POWER APPLIANCES. … 258. ROTARY PISTON ENGINE. Has a casing or frame inwhich is an annular groove or cyHnder. In this groove is fitted a pis-ton which is carried by the piston diskas shown. A sHding abutment israised and lowered by means of a camon the engine shaft and a cam rod.The revolving shaft and cam causesthe…
